Front Wheelhouse Front Panel Hole Cover Replacement (Terrain)

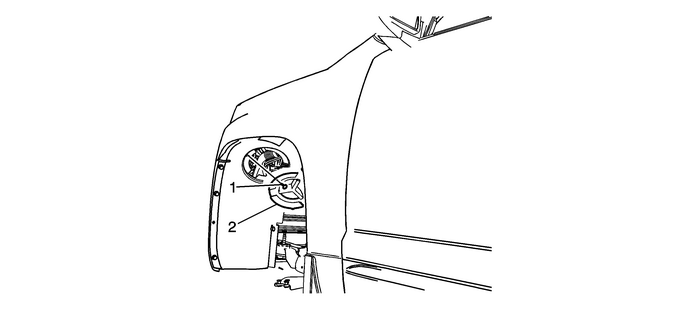

Front Wheelhouse Front Panel Hole Cover Replacement

Callout

Component Name

Preliminary Procedure

Remove the front tire and wheel assembly. Refer toTire and Wheel Removal and Installation.

1

Front Wheelhouse Front Panel Hole Cover Screw

2

Front Wheelhouse Front Panel Hole Cover

Tip:Rotate the cover counter-clockwise and remove from the frontof the wheelhouse liner.
