Water Pump Removal Engine Cooling Coolant Pump

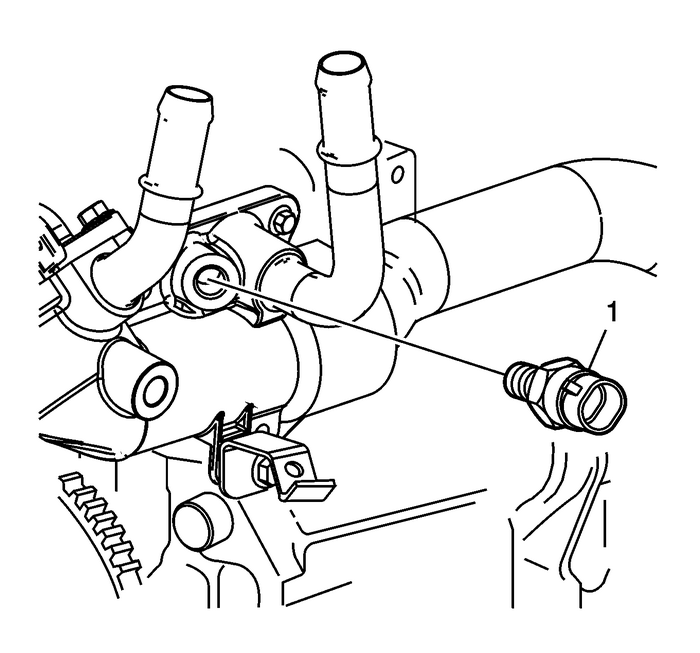

Remove the engine coolant temperaturesensor-(1).

Water Pump Removal Engine Cooling Coolant Pump

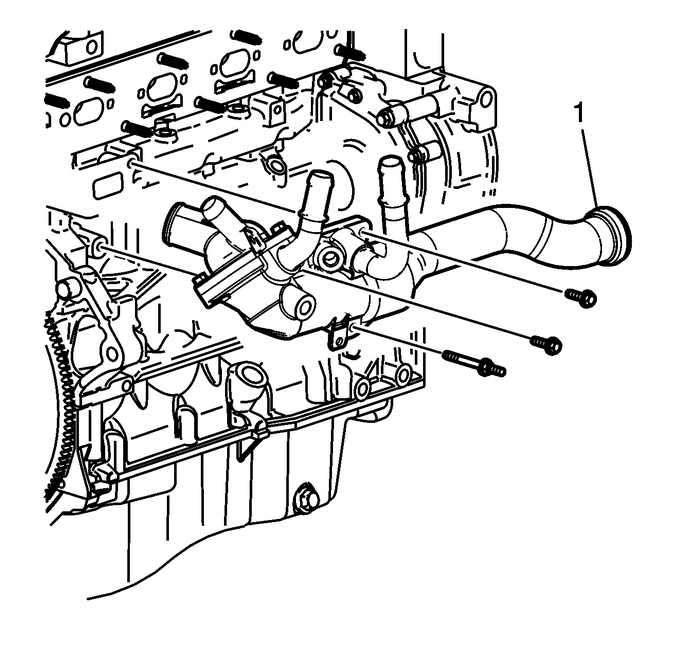

Remove the thermostat and water feed pipe retainingbolts.

Note:Twist the water feed pipe while pulling to remove it from thewater pump cover.

Remove the thermostat housing and water feedpipe-(1) from the water pump cover.

Water Pump Removal Engine Cooling Coolant Pump

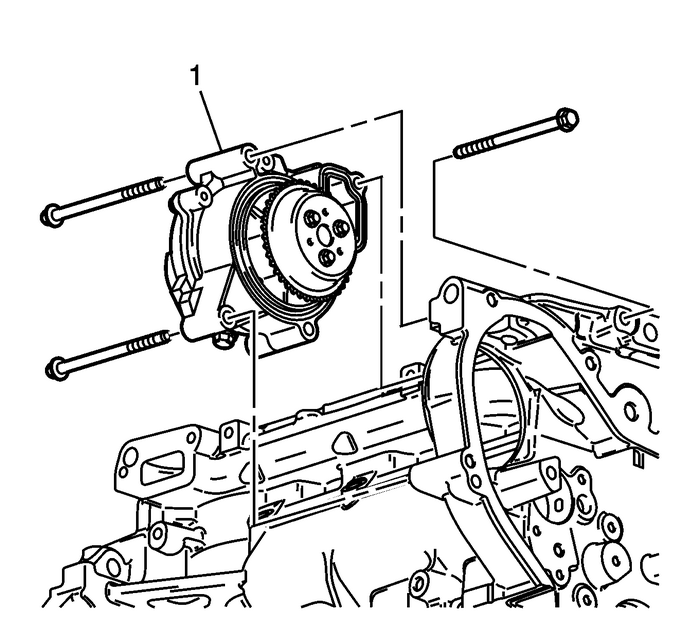

Remove the water pump retaining bolts. Be sure to remove thebolt that goes through the front of the engine block.Remove the water pump assembly-(1).

Engine Block Disassemble Engine Block
Remove the engine block coolant drain plug.Remove the oil flow check valve.Remove the rear oil passage plugs-(3).Remove the 3 oil passage plugs on each side of theblock-(2).Remove the 2 water passage ...

Engine Block Disassemble Engine Block
Remove the engine front cover studs-(1).Remove the block heater cartridge, if equipped.Remove the right knock sensor bolt.Remove the right knock sensor.Remove the left knock sensor bolt.Remove the lef ...
