Engine Block Disassemble Engine Block

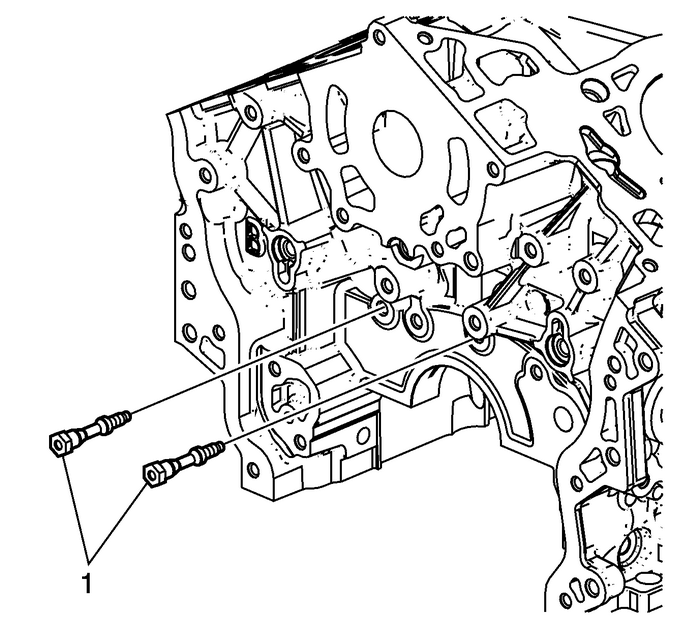

Remove the engine front cover studs-(1).

Engine Block Disassemble Engine Block

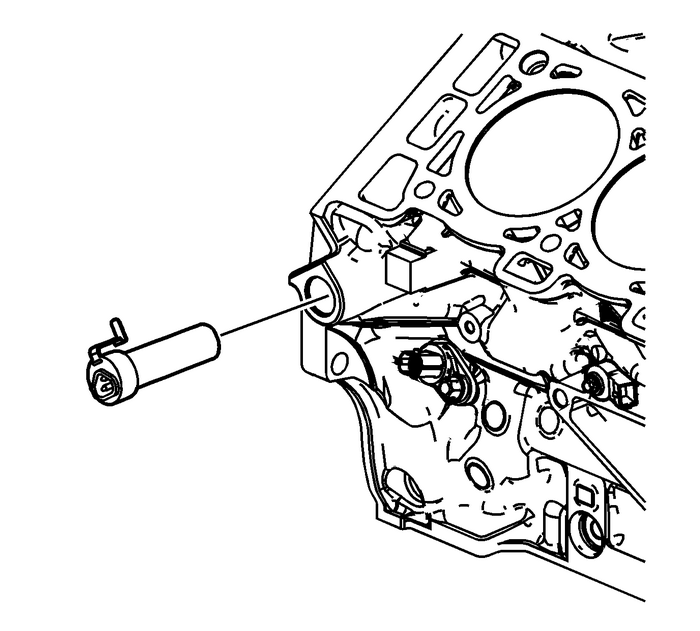

Remove the block heater cartridge, if equipped.

Engine Block Disassemble Engine Block

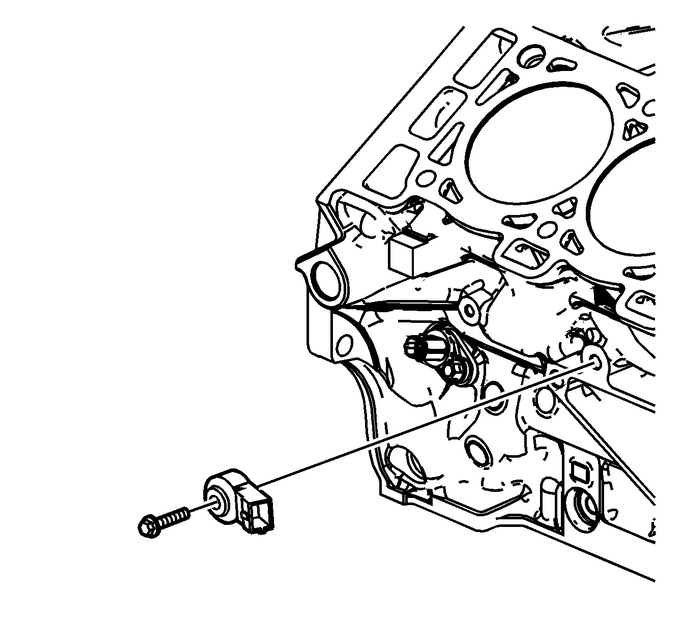

Remove the right knock sensor bolt.Remove the right knock sensor.

Engine Block Disassemble Engine Block

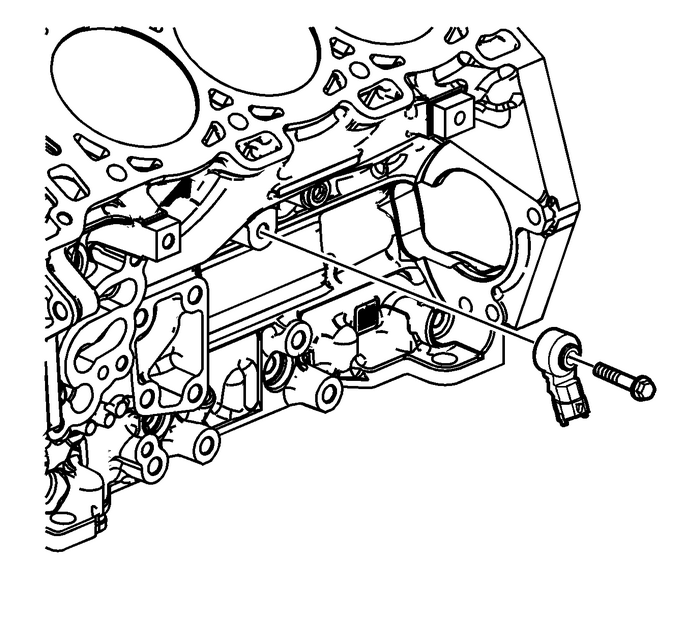

Remove the left knock sensor bolt.Remove the left knock sensor.

Engine Block Disassemble Engine Block

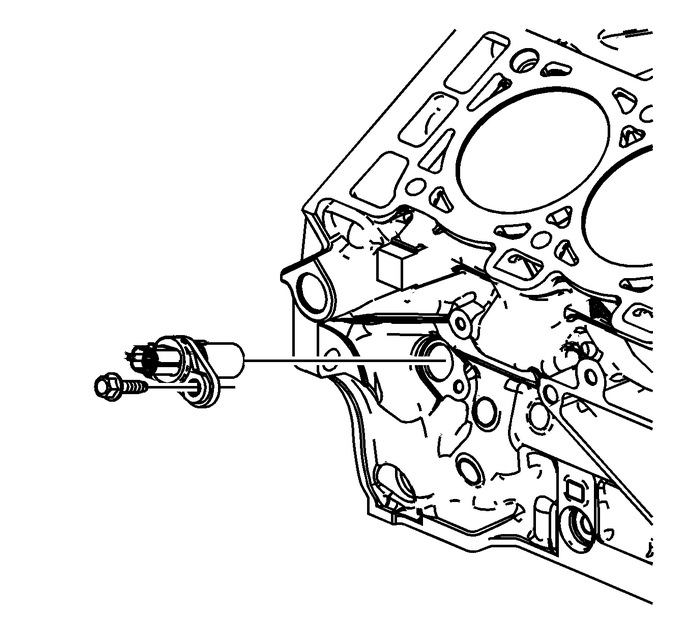

Remove the crankshaft position sensor bolt.Remove the crankshaft position sensor.

Engine Block Disassemble Engine Block

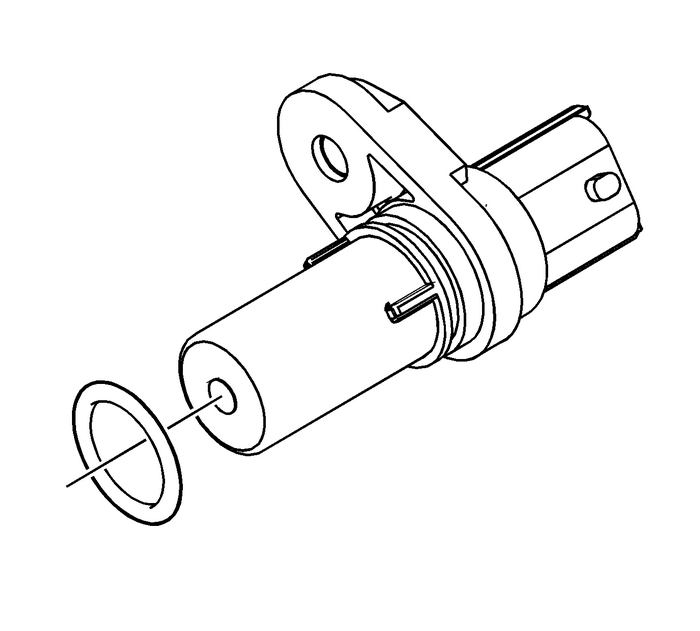

Remove the crankshaft position sensor O-ring, ifdamaged.

Engine Block Disassemble Engine Block

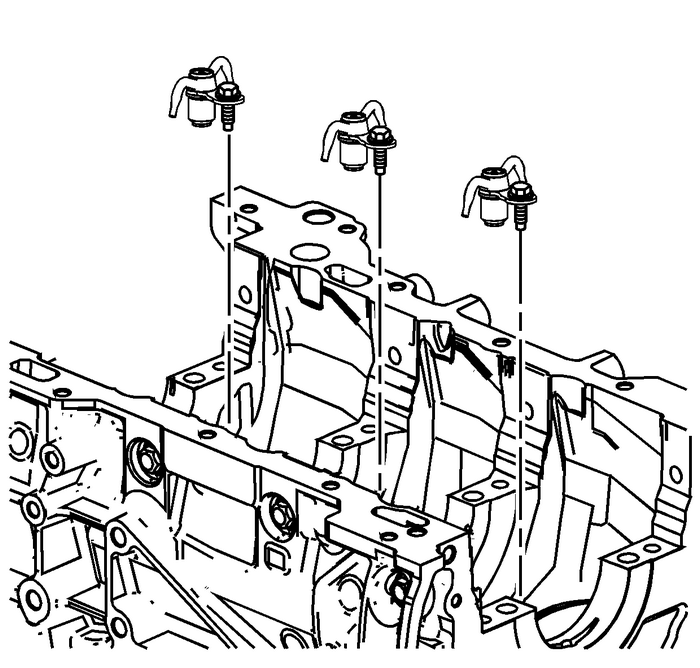

Remove oil jet bolts.Remove oil jets.

Engine Block Disassemble Engine Block

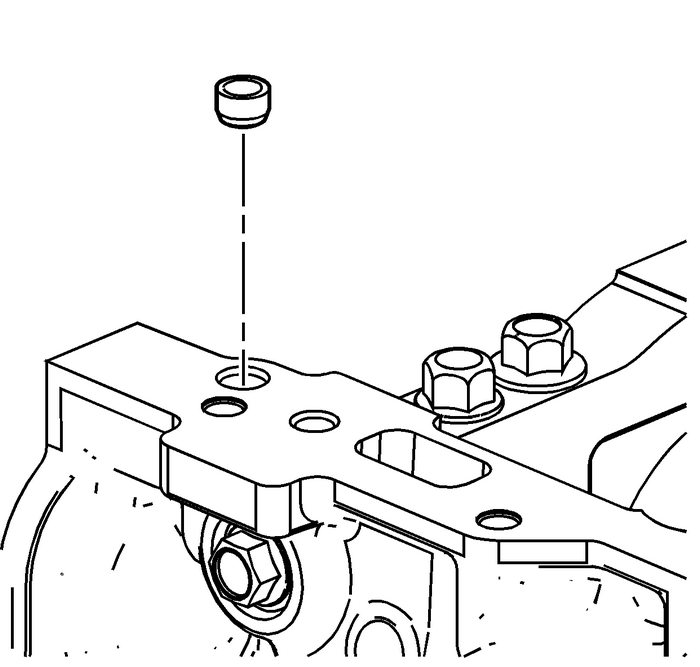

Remove the right front oil pan rail oil gallery expansionplug.

Engine Block Disassemble Engine Block

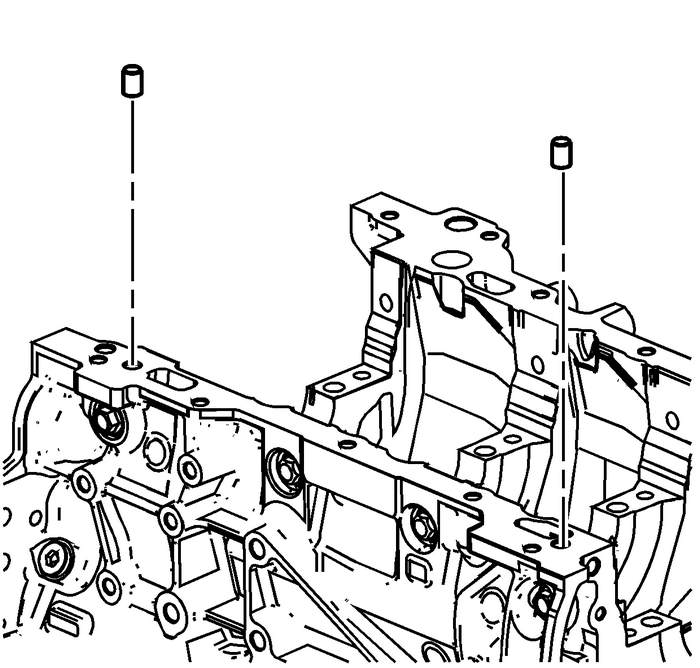

Remove the cylinder block-to-oil panalignment dowels.

Engine Block Disassemble Engine Block

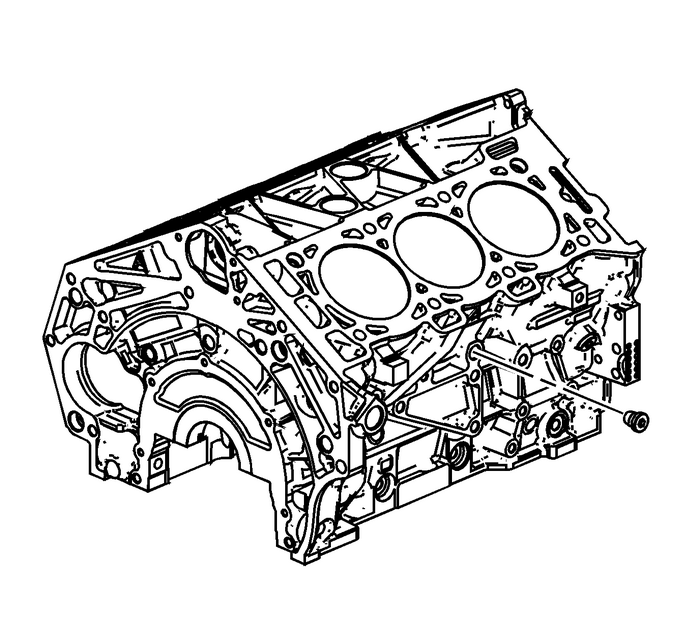

Remove the M14 right side oil gallery threaded plug.

Engine Block Disassemble Engine Block

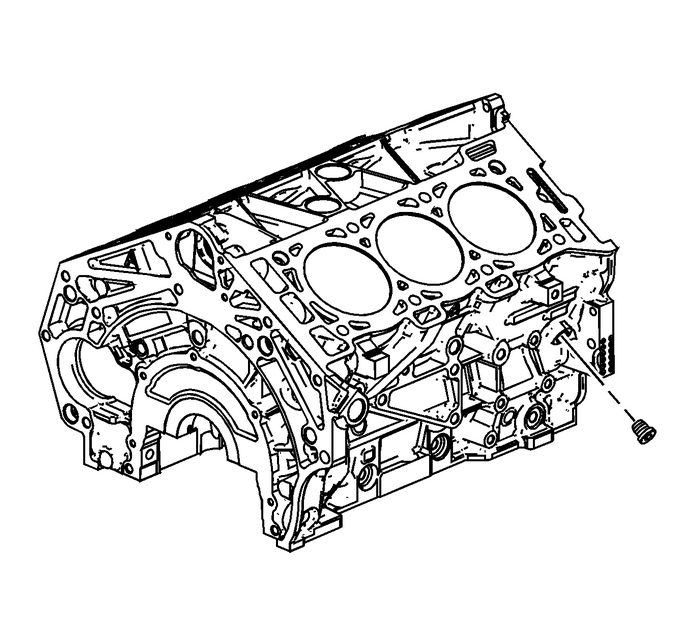

Remove the M14 right side coolant drain threaded plug.

Engine Block Disassemble Engine Block

Remove the M14 rear oil gallery threaded plug.

Engine Block Disassemble Engine Block

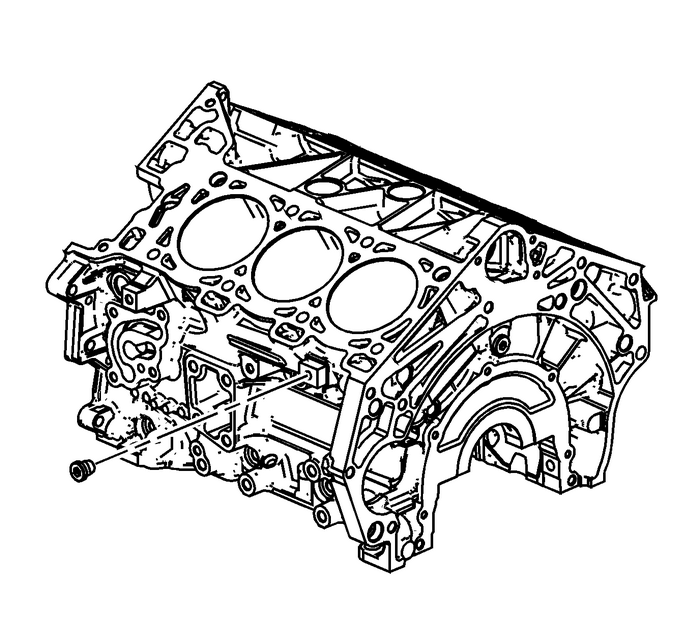

Remove the M14 left side coolant drain threaded plug.

Engine Block Disassemble Engine Block

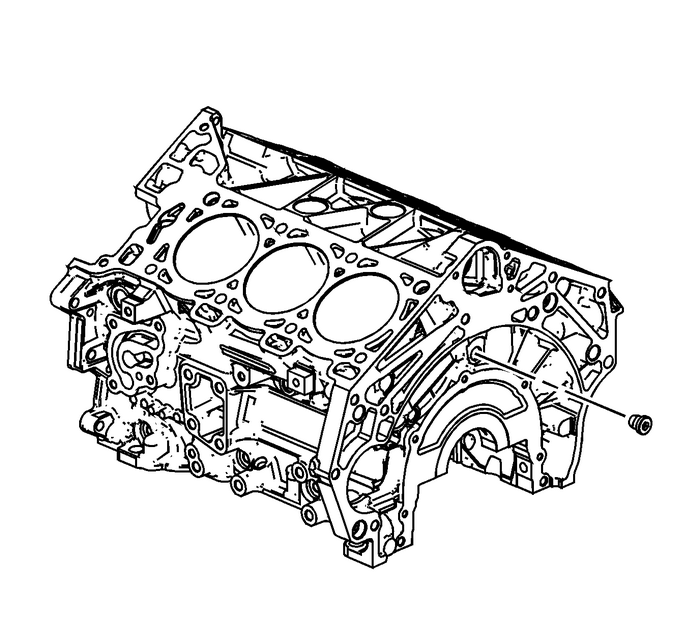

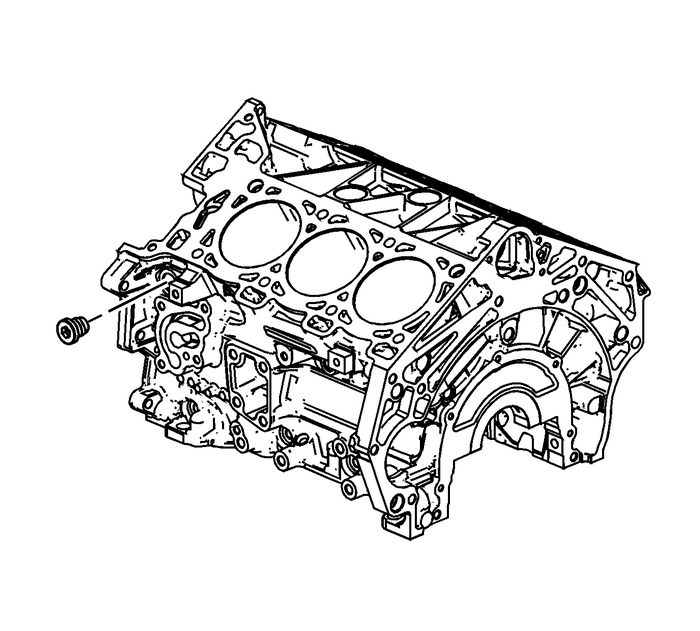

Remove the M20 left side oil gallery threaded plug.

Engine Block Disassemble Engine Block

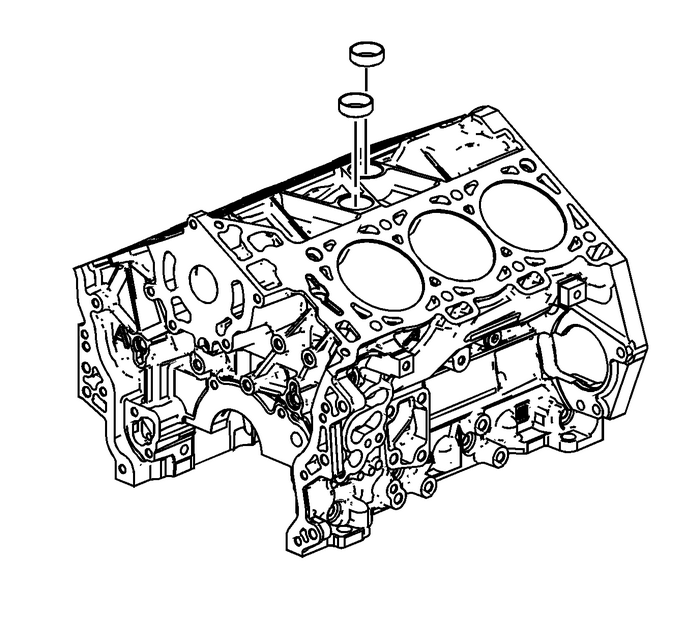

Remove the coolant expansion plugs.

Engine Block Disassemble Engine Block

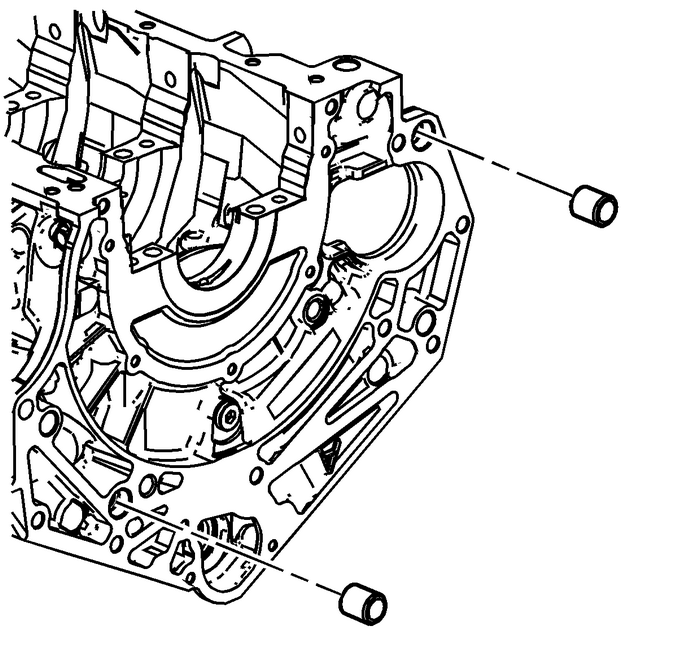

Remove the cylinderblock-to-transmission alignmentdowels.

Engine Block Disassemble Engine Block

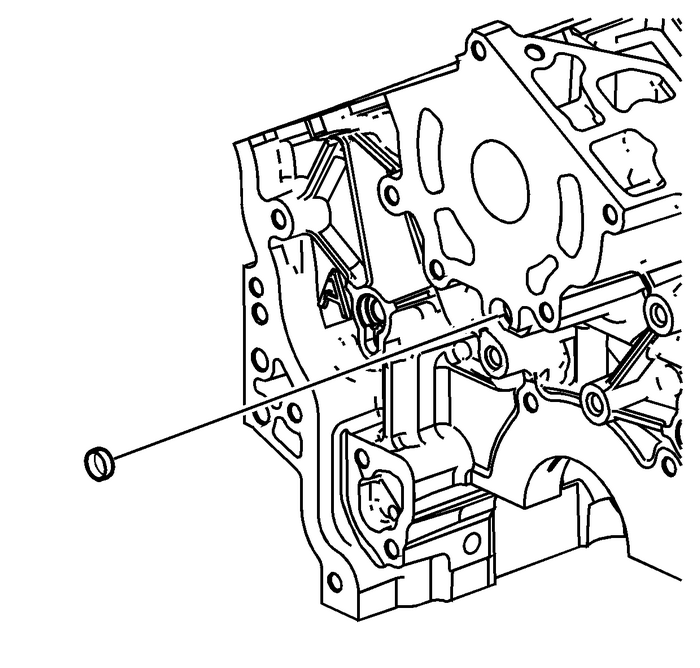

Remove the front oil gallery expansion plug.

Engine Block Disassemble Engine Block

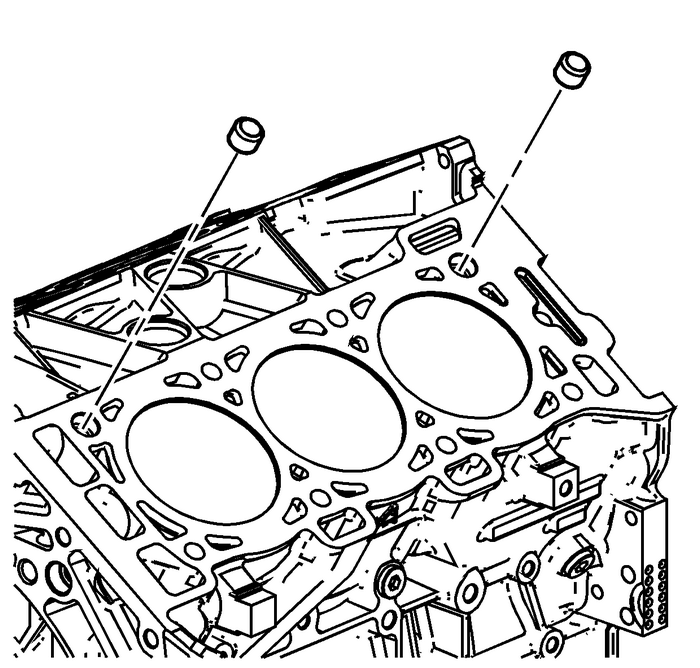

Remove the cylinder block-to-cylinderhead alignment dowels.
