Fuel Pump Removal Fuel System Fuel Pumps

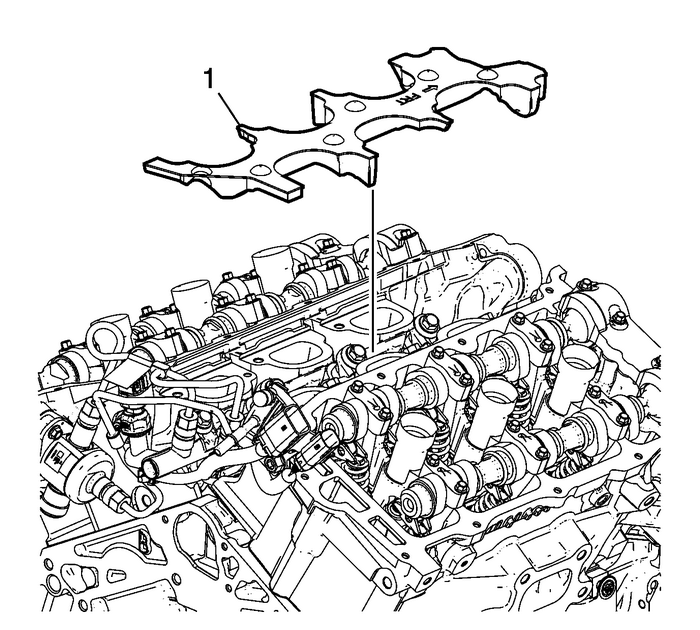

Remove the fuel rail noise shield-(1).

Fuel Pump Removal Fuel System Fuel Pumps

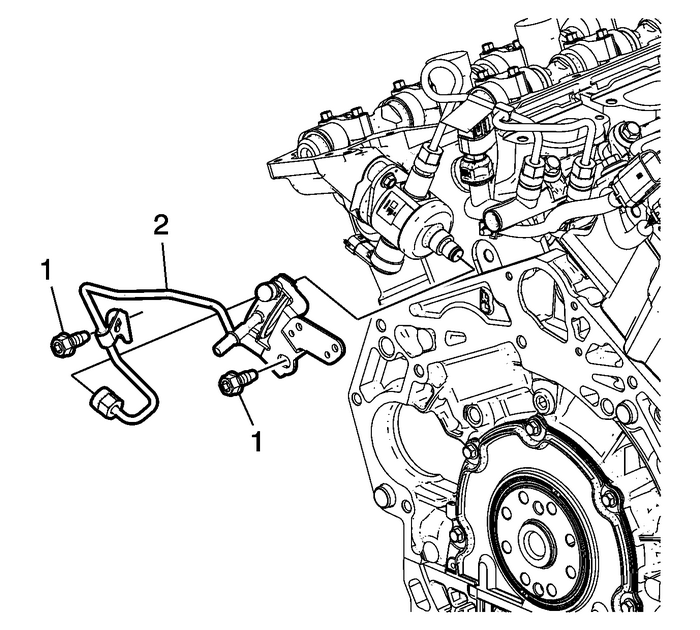

Remove the fuel rail wiring connectors from the fuel feedpipe bracket.Remove the fuel feed pipe bolts-(1).Remove and discard the fuel feed pipe-(2).

Fuel Pump Removal Fuel System Fuel Pumps

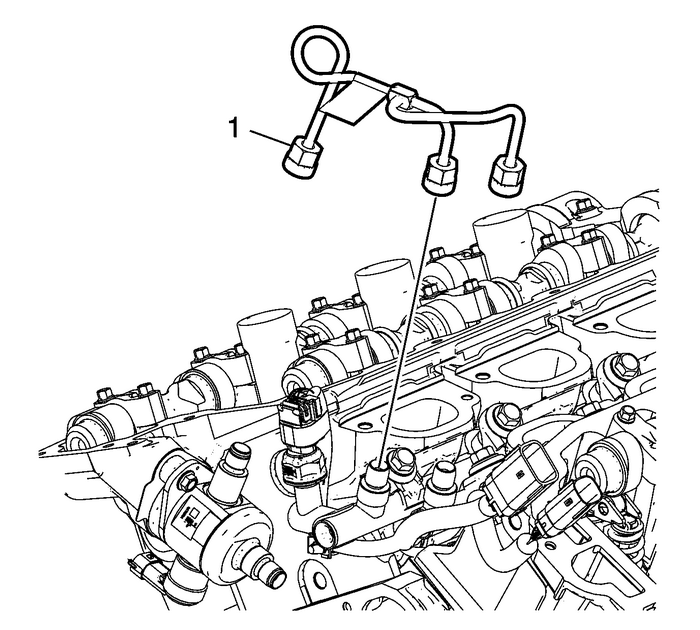

Remove and discard the high pressure LH to RH fuel railcrossover pipe-(1).

Fuel Pump Removal Fuel System Fuel Pumps

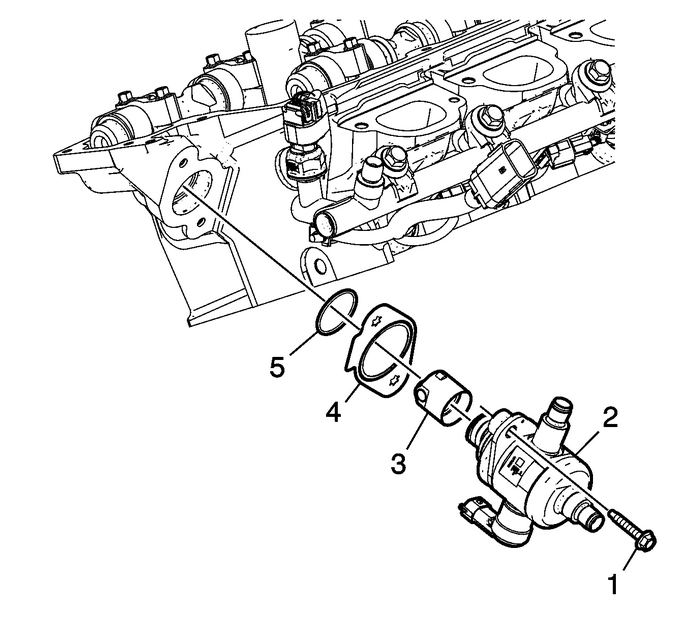

Remove and discard high pressure fuel pumpbolts-(1).Remove the high pressure fuel pump-(2).Remove the valve lifter follower-(3).Remove and discard the high pressure fuel pumpgasket-(4).Remove and discard the high pressure fuel pumpO-ring-(5).
