Engine Block Disassemble Engine Block

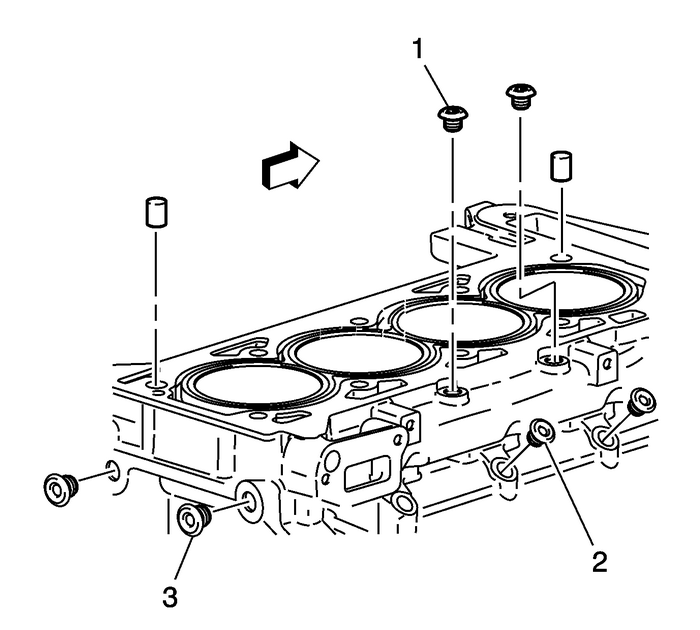

Remove the engine block coolant drain plug.Remove the oil flow check valve.Remove the rear oil passage plugs-(3).Remove the 3 oil passage plugs on each side of theblock-(2).Remove the 2 water passage plugs on the top of theblock-(1).Remove the 2 front oil passage plugs.

Engine Block Disassemble Engine Block

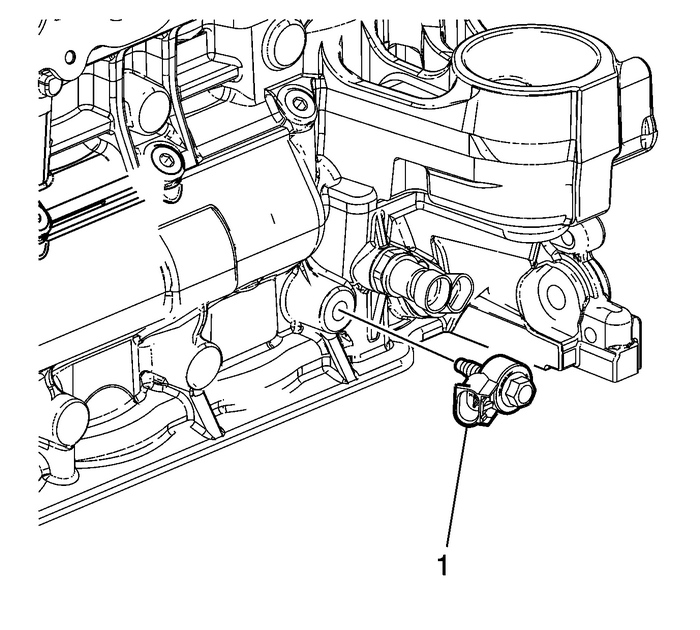

Remove the knock sensor-(1) and bolt.

Engine Block Disassemble Engine Block

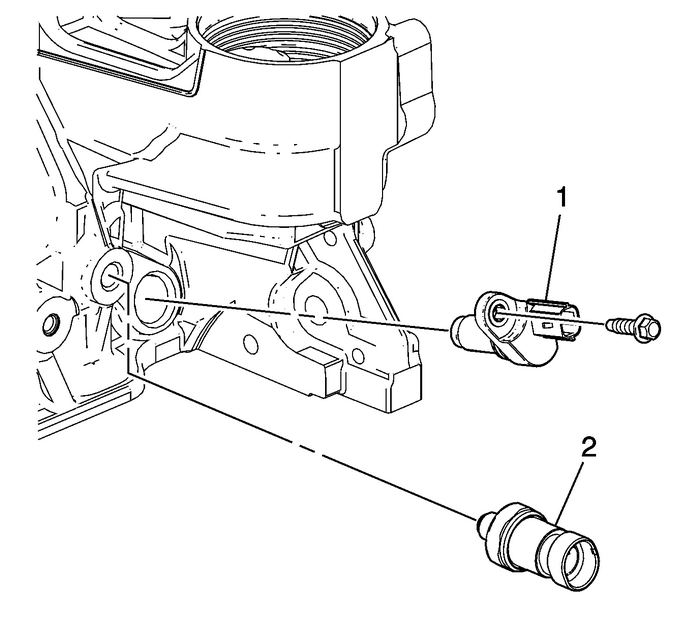

Remove the oil pressure switch-(2).Remove the crankshaft position (CKP) sensor-(1)and bolt.

Engine Block Disassemble Engine Block

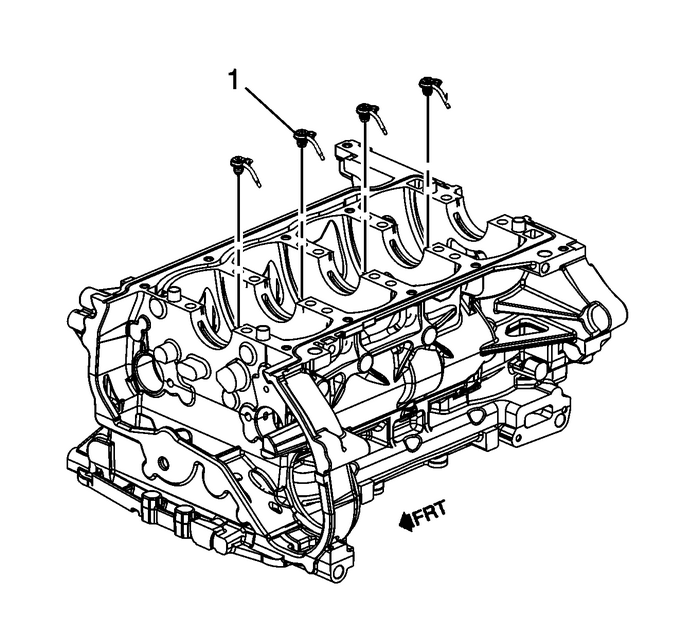

If equipped, loosen the piston oil nozzleassembly-(1) bolt and remove the piston oil nozzleassembly.

Drive Belt Tensioner Removal Pulleys and Belts Belt Tensioner
Remove the drive belt tensioner bracket bolts.Remove the drive belt tensioner assembly. ...

Water Pump Removal Engine Cooling Coolant Pump
Remove the engine coolant temperaturesensor-(1).Remove the thermostat and water feed pipe retainingbolts.Note:Twist the water feed pipe while pulling to remove it from thewater pump cover.Remove the t ...
