Chevrolet Equinox Service Manual: Drive Belt Tensioner Removal Pulleys and Belts Belt Tensioner

Chevrolet Equinox Service Manual / Powertrain / Engine / Drive Belt Tensioner Removal Pulleys and Belts Belt Tensioner

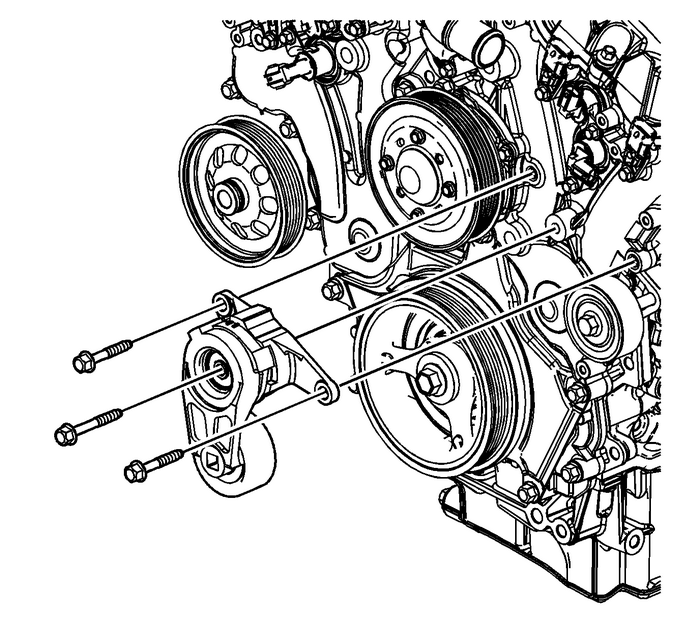

Drive Belt Tensioner Removal Pulleys and Belts Belt Tensioner

Remove the drive belt tensioner bracket bolts.Remove the drive belt tensioner assembly.

Crankshaft Sprocket Removal Engine Block Cylinder Block Crankshaft Sprocket
Remove the crankshaft sprocket from the nose of thecrankshaft. ...

Engine Block Disassemble Engine Block
Remove the engine block coolant drain plug.Remove the oil flow check valve.Remove the rear oil passage plugs-(3).Remove the 3 oil passage plugs on each side of theblock-(2).Remove the 2 water passage ...
