Valve Lifter Cleaning and Inspection

Caution:Refer toValve Lifter Priming Caution.

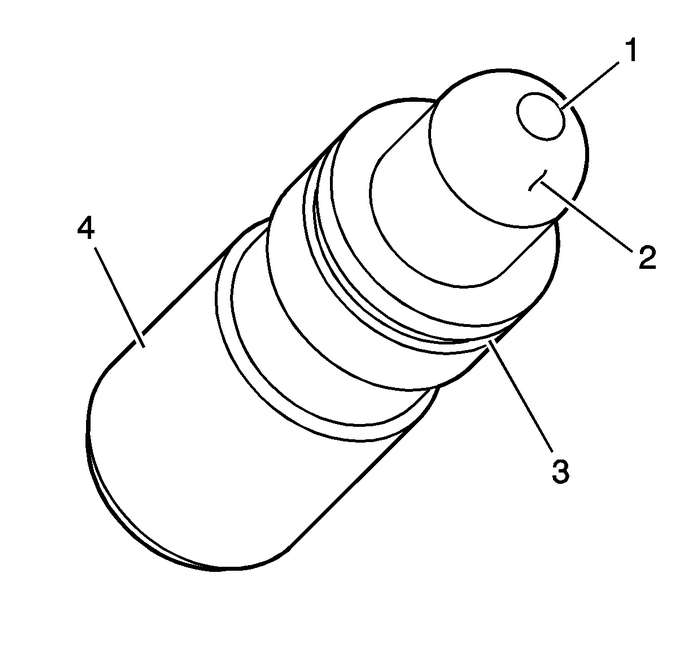

Inspect the stationary hydraulic lash adjuster (SHLA) in thefollowing areas:A plugged oil passage-(1)A scored or worn camshaft follower pivotarea-(2)A damaged or broken retainer-(3), someapplicationsA severely scuffed or worn SHLA body-(4)Replace the SHLA or SHLAs as necessary.
