Camshaft Position Actuator Removal - Right Side Intake Valvetrain Camshaft

Caution:Refer toTorque Reaction Against Timing Drive Chain Caution.

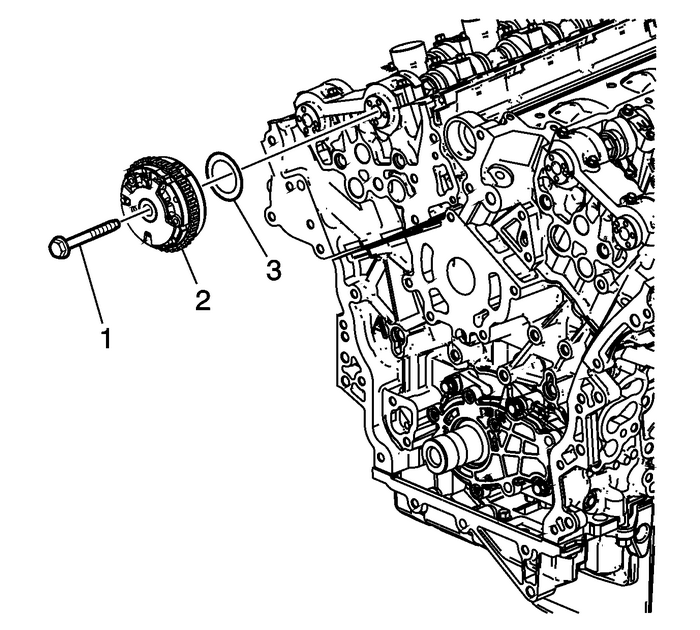

Use an open wrench on the hex cast into the camshaft in orderto prevent engine rotation when loosening the camshaft positionactuator bolt.Remove the right intake camshaft position actuatorbolt-(1).Remove the right intake camshaft positionactuator-(2).Remove the camshaft thrust washer ifapplicable-(3).

Camshaft Position Actuator Removal - Left Side Intake Valvetrain Camshaft

Caution:Refer toTorque Reaction Against Timing Drive Chain Caution.Use an open wrench on the hex cast into the camshaft in orderto prevent engine rotation when loosening the camshaft positionactuator ...

Valve Lifter Cleaning and Inspection

Caution:Refer toValve Lifter Priming Caution.Inspect the stationary hydraulic lash adjuster (SHLA) in thefollowing areas:A plugged oil passage-(1)A scored or worn camshaft follower pivotarea-(2)A dama ...
