Drive Belt Tensioner Replacement Pulleys and Belts Belt Tensioner

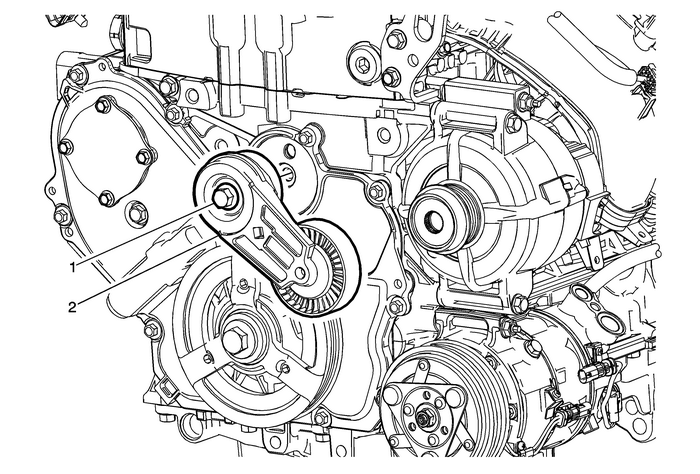

Drive Belt Tensioner Replacement

Callout

Component Name

Preliminary Procedure

Remove the drive belt. Refer toDrive Belt Replacement.

1

Drive Belt Tensioner Fastener

Caution:Refer toFastener Caution.

Note:Access the fastener through the hole in the framerail.

Tighten

45-Y(33-lb-ft)

2

Drive Belt Tensioner
