Chevrolet Equinox Service Manual: Drive Belt Tensioner Replacement Pulleys and Belts Belt Tensioner

Chevrolet Equinox Service Manual / Powertrain / Engine / Drive Belt Tensioner Replacement Pulleys and Belts Belt Tensioner

Drive Belt Tensioner Replacement Pulleys and Belts Belt Tensioner

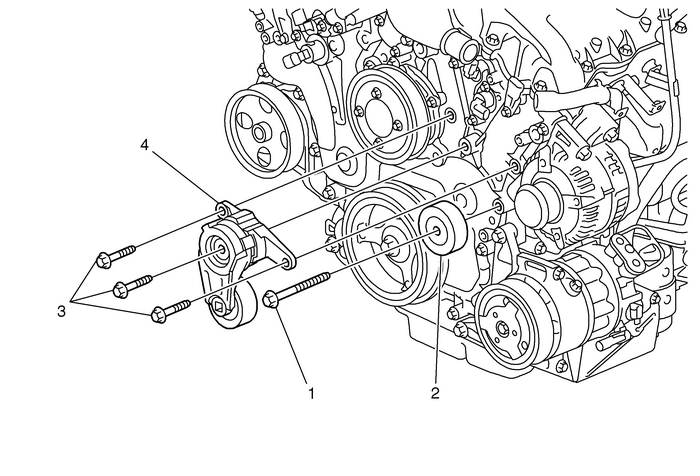

Drive Belt Tensioner Replacement

Callout

Component Name

Preliminary Procedure

Remove the drive belt. Refer toDrive Belt Replacement.

1

Drive Belt Idler Pulley Fastener

Caution:Refer toFastener Caution.

Tighten

58-Y (43-lb-ft)

2

Drive Belt Idler Pulley

3

Drive Belt Tensioner Fastener (Qty: 3)

Tighten

25-Y (18-lb-ft)

4

Drive Belt Tensioner

Drive Belt Replacement Pulleys and Belts Accessory Drive Belts
Drive Belt ReplacementCalloutComponent NamePreliminary ProceduresRemove the engine mount bracket. Refer toEngine Mount Bracket Replacement - Right Side1Drive BeltProcedureRotate the drive belt tension ...

Drive Belt Tensioner Replacement Pulleys and Belts Belt Tensioner
Drive Belt Tensioner ReplacementCalloutComponent NamePreliminary ProcedureRemove the drive belt. Refer toDrive Belt Replacement.1Drive Belt Tensioner FastenerCaution:Refer toFastener Caution.Note:Acce ...
