Transmission Rear Mount Bracket Replacement (FWD) Automatic Transmission Unit

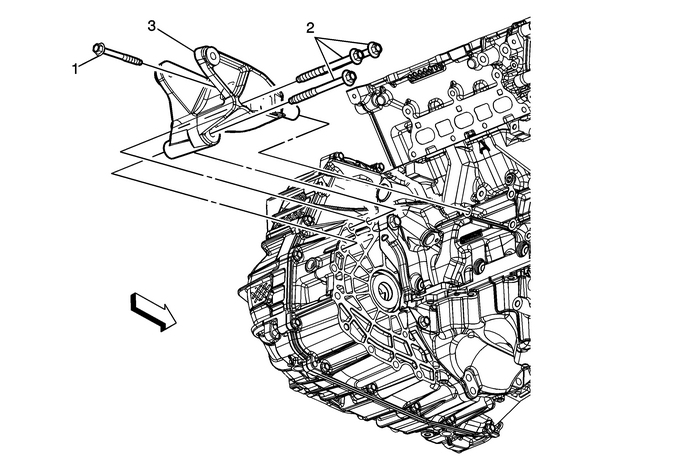

Transmission Rear Mount Bracket Replacement

Callout

Component Name

Preliminary Procedures

Remove the rear transmission mount. Refer toTransmission Rear Mount Replacement.

1

Rear Transmission Mount Bracket Bolt

Caution:Refer toFastener Caution.

Tighten

50-Y(37-lb-ft)

2

Rear Transmission Mount Bracket Bolt(Qty:-3)

Tighten

110-Y(81-lb-ft)

3

Rear Transmission Mount Bracket
