Exhaust Muffler Replacement Exhaust Muffler/Resonator

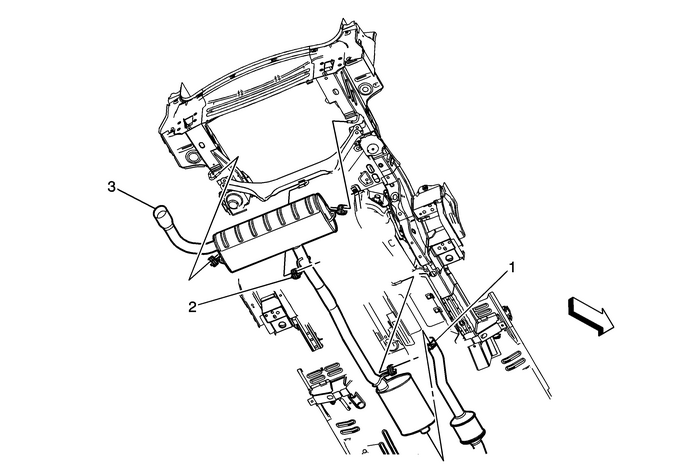

Exhaust Muffler Replacement

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle.Refer toLifting and Jacking the Vehicle

1

Exhaust Muffler Clamp Fastener

Warning:Refer toHot Exhaust System Warning.

Caution:Refer toFastener Caution.

Tighten

40-Y(30-lb-ft).

2

Exhaust Insulator Hanger

3

Exhaust Muffler

ProcedureDisconnect the muffler from the front flexible pipe.Support the front flexible pipe to avoid damaging theflexible pipe.Clean and lubricate the exhaust insulator hangers.
