Transmission Rear Mount Bracket Replacement (AWD) Automatic Transmission Unit

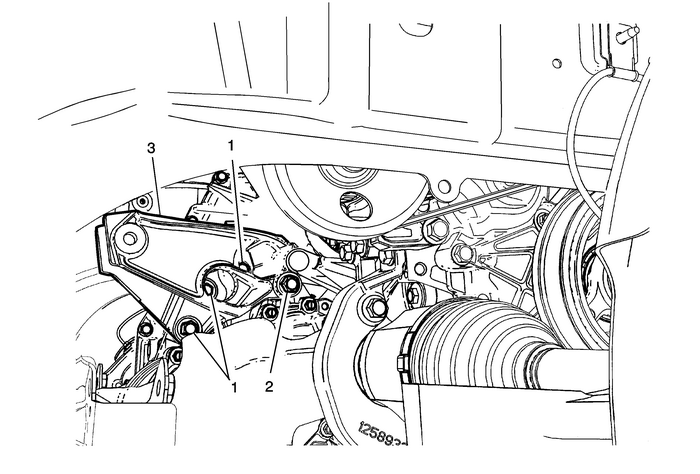

Transmission Rear Mount Bracket Replacement

Callout

Component Name

Danger:To avoid any vehicle damage, serious personal injury or deathwhen major components are removed from the vehicle and the vehicleis supported by a hoist, support the vehicle with jack stands atthe opposite end from which the components are being removed andstrap the vehicle to the hoist.

Warning:Refer toSafety Glasses Warning.

Preliminary ProceduresRaise and suitably support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the right front tire and wheel assembly. Refer toTire and Wheel Removal and InstallationRemove the right side catalytic converter. Refer toCatalytic Converter Replacement - Right SideRemove the rear mount. Refer toTransmission Rear Mount Replacement

1

Transmission Rear Mount Fastener (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

100-Y(74-lb-ft)

2

Transmission Rear Mount Bracket Fastener(Qty:-1)

Tighten

57-Y(42-lb-ft)

3

Transmission Rear Mount Bracket

Transmission General Specifications Automatic Transmission Unit
