Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T40/45) Automatic Transmission Unit

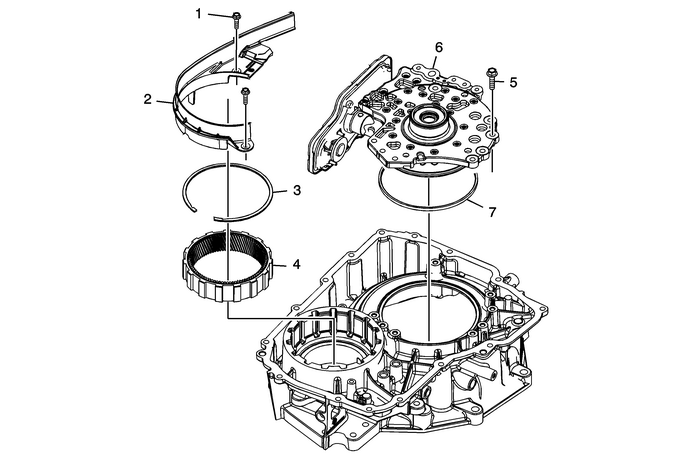

Transmission Fluid Pump, Front Differential Carrier Baffle, and Front DifferentialRing Gear Removal

Callout

Component Name

1

Front Differential Carrier Baffle Bolts-M6-x-25-(Qty:-2)

2

Front Differential Carrier Baffle

3

Front Differential Ring Gear Retainer

Note:Note the direction of the taper to ensure proper installation.

4

Front Differential Ring Gear

5

Fluid Pump Bolts-M8-x-33-(Qty:-8)

6

Fluid Pump Assembly

7

Torque Converter and Differential Housing Seal
