Transmission Front Mount Replacement Automatic Transmission Unit

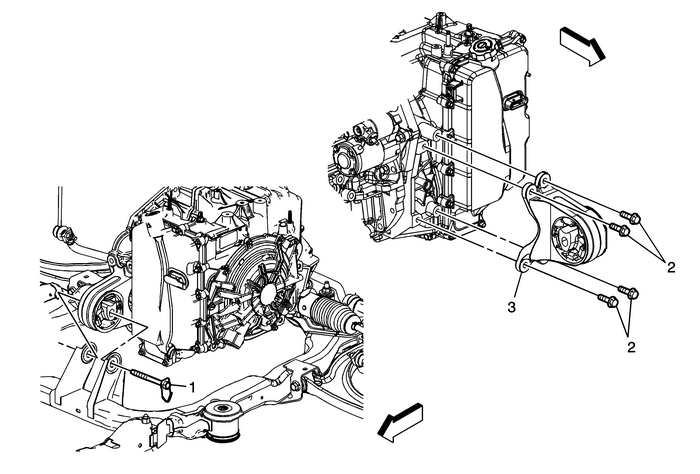

Transmission Front Mount Replacement

Callout

Component Name

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Support the transmission with a transmission jack.

1

Front Transmission Mount Thru Bolt

Caution:Refer toFastener Caution.

Tighten

100-Y(74-lb-ft)

2

Front Transmission Mount Bolt (Qty:-4)

Tighten

57-Y(42-lb-ft)

3

Front Transmission Mount
