Torque Converter Installation Automatic Transmission Unit

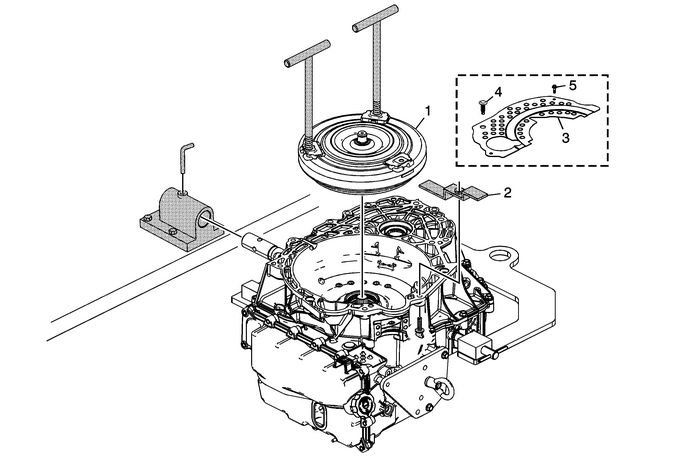

Torque Converter Installation

Callout

Component Name

1

Torque Converter Assembly

Caution:Lower the torque converter straight down. Failure to lowerthe torque converter straight down could damage the torqueconverter clutch lip seal inside the torque converter clutchassembly.

Special Tools

DT 46409Torque Converter Lifting Handles

For equivalent regional tools, refer toSpecial Tools.

2

DT 21366Converter Holding Strap

Warning:The torque converter must be held to the torque converterhousing by a retaining device such as shipping brackets. Withoutthe retaining device, the torque converter may slide forward,disengaging the oil pump, or may fall completely out of thetransmission causing personal injury and/or property damage.

3

Dust Cover-–-ModelDependant

4

Dust Cover Push Pin-–-ModelDependant (Qty: 2)

5

Dust Cover Bolt-–-ModelDependant

Caution:Refer toFastener Caution.

Tighten

75-Y(37-lb-ft)

Torque Converter Housing with Fluid Pump Assembly Removal (Non Hybrid) Automatic Transmission Unit Transmission Oil Pump
Torque Converter Housing with Fluid Pump Assembly RemovalCalloutComponent Name1Torque Converter and Differential Housing Bolts-M8-x-30-(Qty:-15)2Torque Converter with Fluid Pump Housing Assembly3Torqu ...

Torque Converter Installation Automatic Transmission Unit
Torque Converter InstallationCalloutComponent Name1Torque Converter AssemblyNote:Failure to lower the torque converter straight down could damage the torque converterclutch lip seal inside the torque ...
