Torque Converter Housing with Fluid Pump Assembly Removal (Non Hybrid) Automatic Transmission Unit Transmission Oil Pump

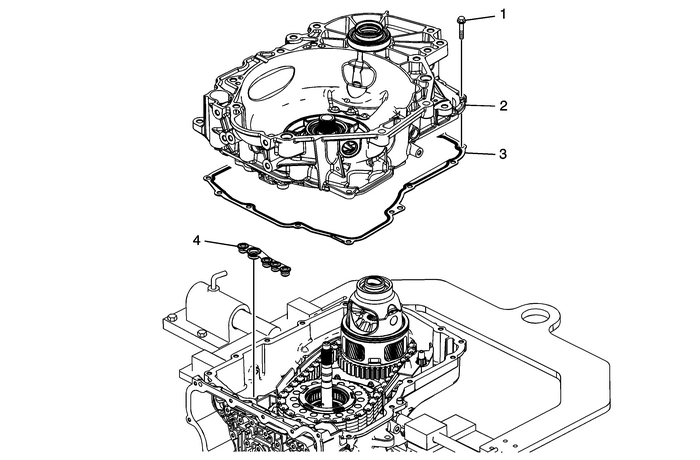

Torque Converter Housing with Fluid Pump Assembly Removal

Callout

Component Name

1

Torque Converter and Differential Housing Bolts-M8-x-30-(Qty:-15)

2

Torque Converter with Fluid Pump Housing Assembly

3

Torque Converter Housing Gasket

Note:Discard the seal. It is not reusable.

4

Fluid Pump Seal Assembly

Note:Discard the seal. It is not reusable.

Torque Converter Housing with Fluid Pump Assembly Installation (6T40/6T45/6T50 Non Hybrid) Automatic Transmission Unit Transmission Oil Pump
Torque Converter Housing with Fluid Pump Assembly InstallationCalloutComponent Name1Fluid Pump Seal Assembly2Torque Converter Housing Gasket3Torque Converter (w/Fluid Pump) Housing AssemblyNote:Rotate ...

Torque Converter Installation Automatic Transmission Unit
Torque Converter InstallationCalloutComponent Name1Torque Converter AssemblyCaution:Lower the torque converter straight down. Failure to lowerthe torque converter straight down could damage the torque ...
