Torque Converter Housing with Fluid Pump Assembly Installation (6T40/6T45/6T50 Non Hybrid) Automatic Transmission Unit Transmission Oil Pump

Torque Converter Housing with Fluid Pump Assembly Installation

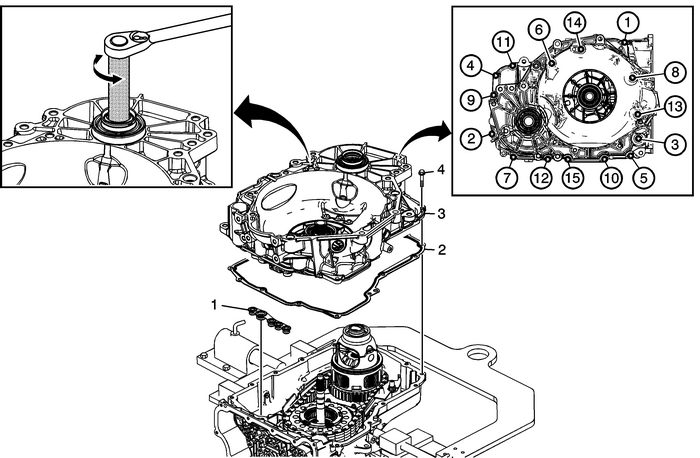

Callout

Component Name

1

Fluid Pump Seal Assembly

2

Torque Converter Housing Gasket

3

Torque Converter (w/Fluid Pump) Housing Assembly

Note:Rotate the differential slightly in each direction using the rotating tool to alignthe Differential Pinion Gears with the Differential Ring Gear in the Torque ConverterHousing.

DT-47793 Differential Rotating Tool for 6T40/45 applicationsDT-49938 Differential Rotating Tool for 6T50 applicationsSpecial ToolsDT-47793 Differential Rotating ToolDT-49938 Differential Rotating Tool

For equivalent regional tools, refer toSpecial Tools.

4

Torque Converter and Differential Housing Bolts-M8-x-30-(Qty:-15)

Caution:Refer toFastener Caution.

Procedure

Tighten the bolts in sequence shown.

Tighten

10-Y (89-lb-in) then rotate the bolt an additional 50-degrees

Special Tool

EN-45059 Angle Meter or equivalent

For equivalent regional tools, refer toSpecial Tools.
