Torque Converter Installation Automatic Transmission Unit

Torque Converter Installation

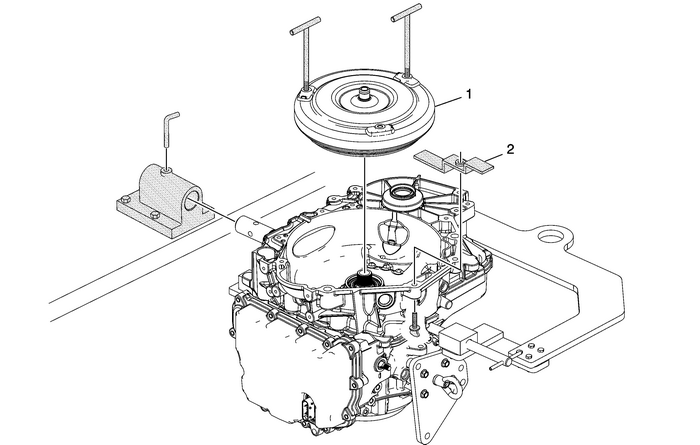

Callout

Component Name

1

Torque Converter Assembly

Note:Failure to lower the torque converter straight down could damage the torque converterclutch lip seal inside the torque converter clutch assembly.

Special Tool

DT-46409 Torque Converter Lifting Handles

For equivalent regional tools, refer toSpecial Tools.

2

DT-21366 Converter Holding Strap

Warning:The torque converter must be held to the torque converterhousing by a retaining device such as shipping brackets. Withoutthe retaining device, the torque converter may slide forward,disengaging the oil pump, or may fall completely out of thetransmission causing personal injury and/or property damage.

Torque Converter Installation Automatic Transmission Unit
Torque Converter InstallationCalloutComponent Name1Torque Converter AssemblyCaution:Lower the torque converter straight down. Failure to lowerthe torque converter straight down could damage the torque ...

Torque Converter Removal Automatic Transmission Unit
Torque Converter RemovalCalloutComponent Name1Lock PinWarning:Lock pin must be secured into the bench fixture to hold thetransmission and prevent bodily injury.Note:Ensure the DT-3289-20 holding fixtu ...
