Sunroof Tilt Position Switch Replacement Moonroof/Sunroof

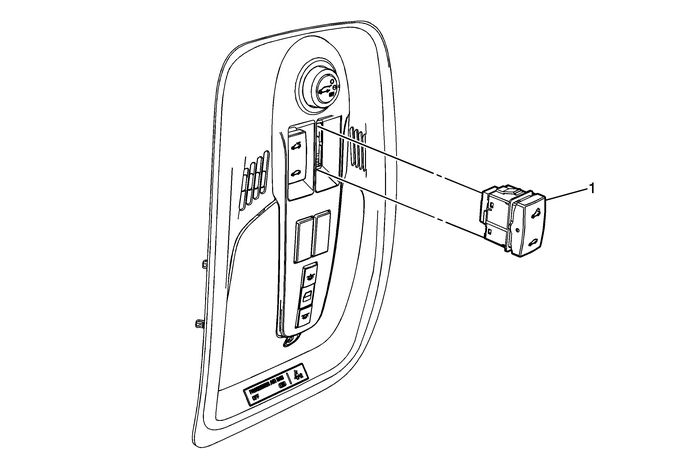

Sunroof Tilt Position Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the roof console. Refer toRoof Console Replacement.

1

Sunroof Tilt Position Switch

ProcedureDisconnect electrical connector.Press tabs together and remove switch.
