Chevrolet Equinox Owners Manual: Steering Wheel Controls

Steering Wheel Controls

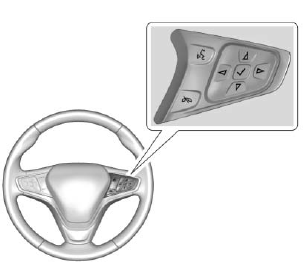

If equipped, some audio controls can be adjusted at the steering wheel.

: For vehicles with OnStar or a Bluetooth system, press to interact with those systems.

See OnStar Overview or Bluetooth (Infotainment Controls) or Bluetooth (Overview).

: Press to reject an incoming call or end a current call. Press to mute or unmute the infotainment system when not on a call.

or : Press to go to the previous or next menu option.

or : Press to go to the next or previous selection.

: Press to select a highlighted menu option.

Steering Wheel Controls

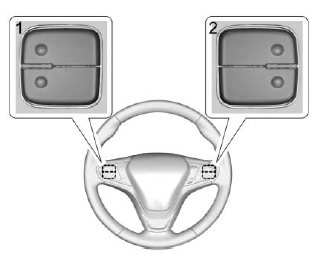

The favorite and volume switches are on the back of the steering wheel.

  1.  Favorite: When on a radio source, press to select the next or previous favorite. When on a media source, press to select the next or previous track.
  2.  Volume: Press to increase or decrease the volume.
