Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.

Secondary Timing Chain Tensioner Shoe Replacement - Left Side Valvetrain Valvetrain Timing Timing Belt Tensioner

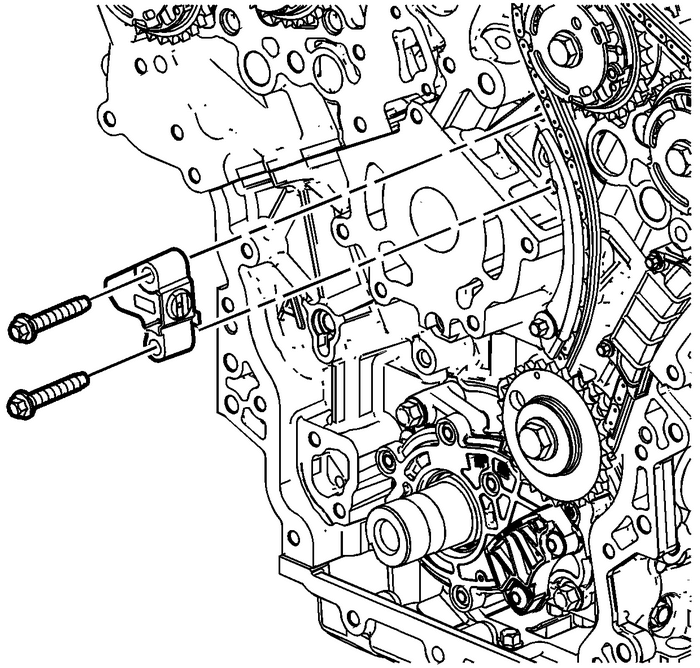

Remove the left bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - Left Side.Remove the secondary shoe. Refer toSecondary Camshaft Drive Chain Shoe Removal - Left Side.Installation Procedure

Secondary Timing Chain Tensioner Shoe Replacement - Left Side Valvetrain Valvetrain Timing Timing Belt Tensioner

Install the secondary shoe. Refer toSecondary Camshaft Drive Chain Shoe Installation - Left Side.Install the left bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Installation - Left Side.Install the engine front cover. Refer toEngine Front Cover Replacement.

Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Left Side Valvetrain Camshaft
Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the left bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - ...

Primary Timing Chain Guide Replacement - Upper Valvetrain Valvetrain Timing Timing Belt/Chain
Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Re ...
