Chevrolet Equinox Service Manual: Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Left Side Valvetrain Camshaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Left Side Valvetrain Camshaft

Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.

Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Left Side Valvetrain Camshaft

Remove the left bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - Left Side.Installation Procedure

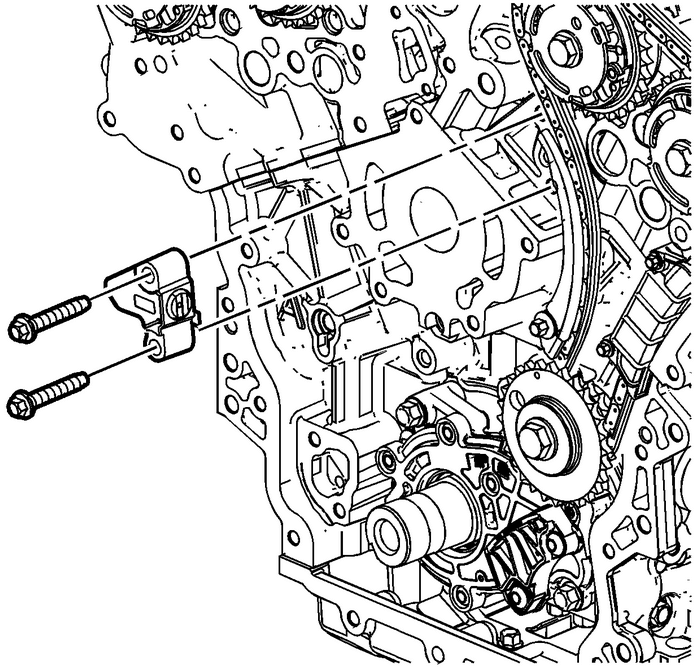

Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Left Side Valvetrain Camshaft

Install the left bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Installation - Left Side.Install the engine front cover. Refer toEngine Front Cover Replacement.

Primary Camshaft Intermediate Drive Chain Tensioner Replacement Valvetrain Camshaft
Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Note:If the entire camshaft timing system is not inStage-2,Timing Chain Alignment Diagram, mark the timing chain ...

Secondary Timing Chain Tensioner Shoe Replacement - Left Side Valvetrain Valvetrain Timing Timing Belt Tensioner
Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the left bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - ...
