Chevrolet Equinox Service Manual: Primary Camshaft Intermediate Drive Chain Tensioner Replacement Valvetrain Camshaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Primary Camshaft Intermediate Drive Chain Tensioner Replacement Valvetrain Camshaft

Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.

Primary Camshaft Intermediate Drive Chain Tensioner Replacement Valvetrain Camshaft

Note:If the entire camshaft timing system is not inStage-2,Timing Chain Alignment Diagram, mark the timing chain andsprockets in order to ensure proper reassembly.

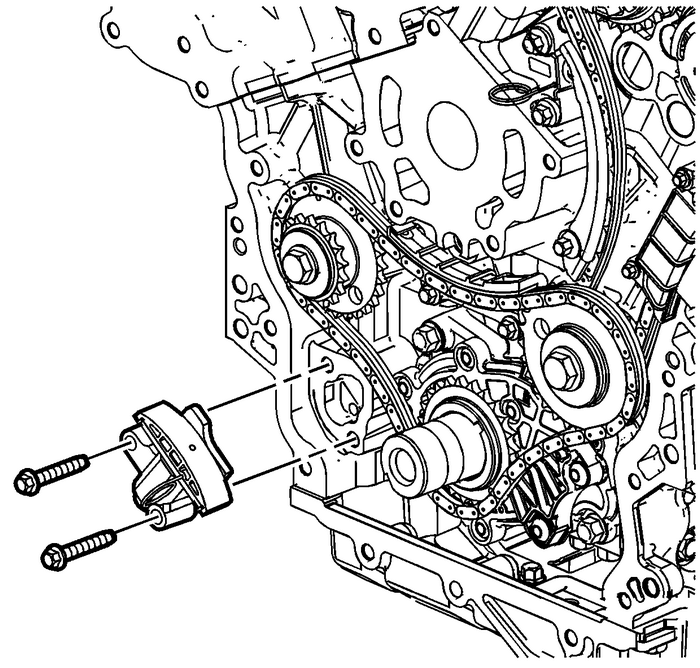

Remove the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Removal.Installation Procedure

Primary Camshaft Intermediate Drive Chain Tensioner Replacement Valvetrain Camshaft

Install the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Installation.Install the engine front cover. Refer toEngine Front Cover Replacement.
