Chevrolet Equinox Service Manual: Primary Timing Chain Guide Replacement - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Chevrolet Equinox Service Manual / Powertrain / Engine / Primary Timing Chain Guide Replacement - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.

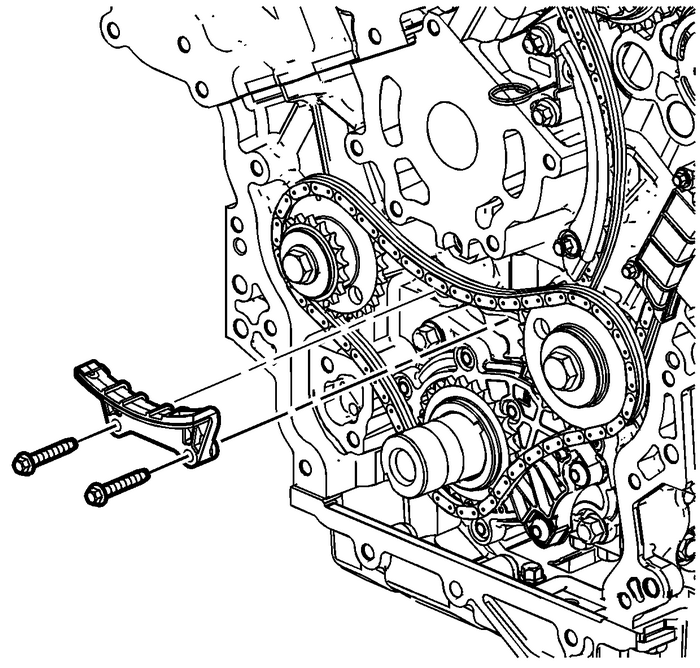

Primary Timing Chain Guide Replacement - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Remove the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Replacement.Remove the primary upper camshaft drive chain guide. Refer toPrimary Timing Chain Guide Removal - Upper.Installation Procedure

Primary Timing Chain Guide Replacement - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Install the primary upper camshaft drive chain guide. Refer toPrimary Timing Chain Guide Installation - Upper.Install the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Installation.Install the engine front cover. Refer toEngine Front Cover Replacement.

Secondary Timing Chain Tensioner Shoe Replacement - Left Side Valvetrain Valvetrain Timing Timing Belt Tensioner
Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the left bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - ...

Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Right Side Valvetrain Camshaft
Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the right bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - ...
