Front Seat Belt Buckle Replacement Primary Seat Belts

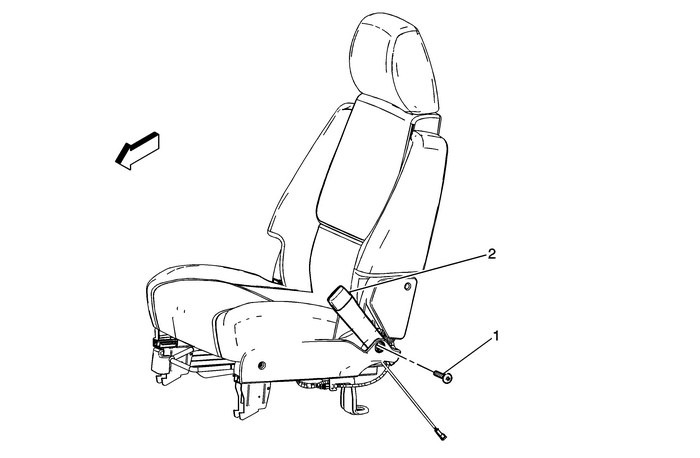

Front Seat Belt Buckle Replacement

Callout

Component Name

1

Front Seat Belt Buckle Bolt

Caution:Refer toFastener Caution.

Tighten

45-Y-(33-lb-ft)

2

Front Seat Belt Buckle

ProcedureDisconnect the electrical connector under the seat.Slide the buckle assembly upwards and out from between theseat cushion and the seat cushion inner trim panel.
