Remote Control Door Lock Receiver Replacement (With UFL) Doors

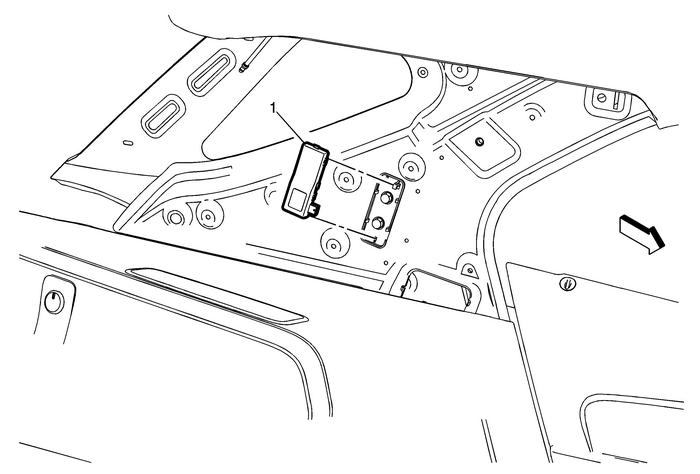

Remote Control Door Lock Receiver Replacement

Callout

Component Name

Preliminary Procedure

Note:The Quarter Window Trim Finish Panel only needs to be repositioned to gain accessto the Remote Control door Lock Receiver. The seat belt does not need to be removedfrom the panel.

Reposition the quarter window trim finish panel – left side. Refer toQuarter Window Trim Finish Panel Replacement.

1

Remote Control Door Lock Receiver

ProcedureDisconnect the electrical connector.Unsnap the receiver from the bracket.For programming and set up, refer toControl Module References
