Remote Control Door Lock Receiver Replacement (Without UFL) Doors

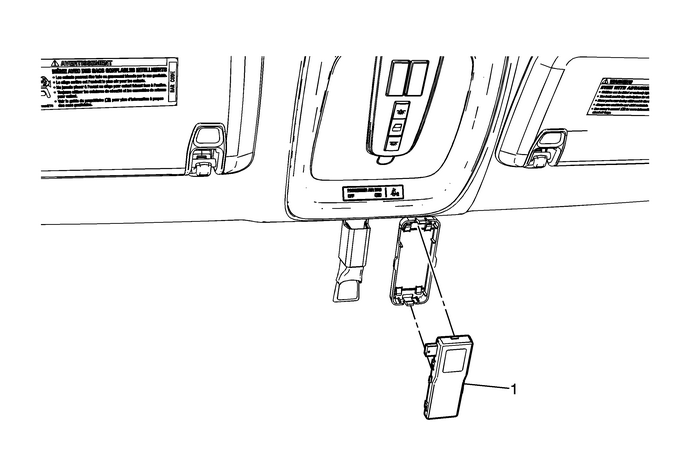

Remote Control Door Lock Receiver Replacement

Callout

Component Name

Preliminary Procedure

Remove the inside rearview mirror mount plate cover.

1

Remote Control Door Lock Receiver

ProcedureDisconnect the electrical connector.Unsnap the receiver from the windshield bracket.For programming and set up, refer toControl Module References
