Camshaft Position Actuator Solenoid Valve Solenoid Replacement - Bank 1 (Right Side) Intake Valvetrain Camshaft

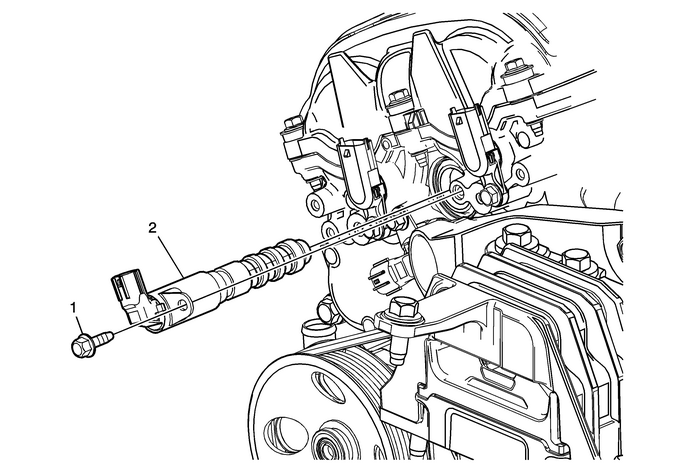

Camshaft Position Actuator Solenoid Valve Solenoid Replacement - Bank 1 (Right Side)Intake

Callout

Component Name

Preliminary Procedure

Remove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement.

1

Camshaft Position Actuator Solenoid Valve Fastener

Caution:Refer toFastener Caution.

Procedure

Disconnect the electrical connector.

Tighten

10-Y(89-lb-in)

2

Camshaft Position Actuator Solenoid Valve
