Evaporative Emission Line Replacement - Engine to Chassis Engine Control

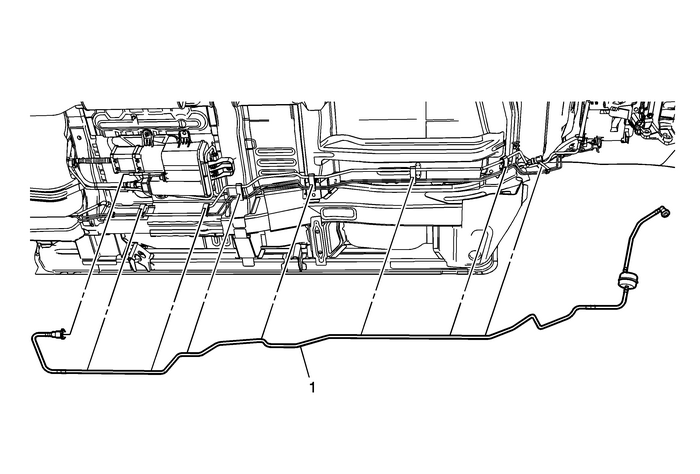

Evaporative Emission Line Replacement - Engine to Chassis

Callout

Component Name

Preliminary ProcedureDisconnect the evaporative emission lines. Refer toPlastic Collar Quick Connect Fitting Service.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Evaporative Emission Line Engine-Chassis

Procedure

Remove the line from the plastic retainers.
