Evaporator Air Temperature Sensor Replacement Engine Control Engine Control Sensors Intake Air Temp Sensor

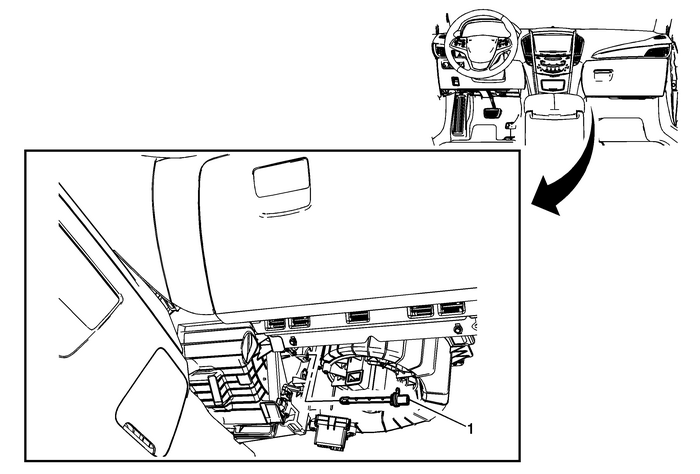

Evaporator Air Temperature Sensor Replacement

Callout

Component Name

Preliminary ProceduresRemove the Instrument panel insulator panel. Refer toInstrument Panel Insulator Panel Replacement - Right Side.Reposition any wiring or hoses to gain access to evaporator temperature sensor.

1

Evaporator Temperature Sensor

ProcedureDisconnect the evaporator temperature sensor connector.Rotate evaporator temperature sensor ¼ turn counter clock wise to remove.
