Chevrolet Equinox Owners Manual: Rear Tow Eye

If the vehicle is equipped with a hitch, there is no provision to use the tow eye in the rear of the vehicle. The hitch may be used to load the vehicle onto a flat bed tow truck.

Rear Tow Eye

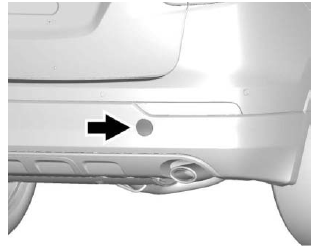

If equipped, carefully open the cover by using the small notch that conceals the rear tow eye socket.

Rear Tow Eye

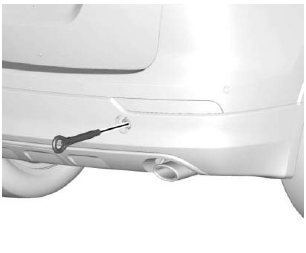

Install the tow eye into the socket by turning it clockwise until it stops in a horizontal position.

When the tow eye is removed, reinstall the cover with the notch in the original position.

To tow the vehicle behind another vehicle for recreational purposes, such as behind a motor home, see Recreational Vehicle Towing.

Front Tow Eye
Carefully open the cover by using the small notch that conceals the front tow eye socket. Install the tow eye into the socket by turning it clockwise until it stops in a horizontal positi ...

Recreational Vehicle Towing
Recreational vehicle towing means towing the vehicle behind another vehicle - such as behind a motor home. The two most common types of recreational vehicle towing are known as dinghy towing and ...
