Rear Side Door Window Switch Replacement Doors

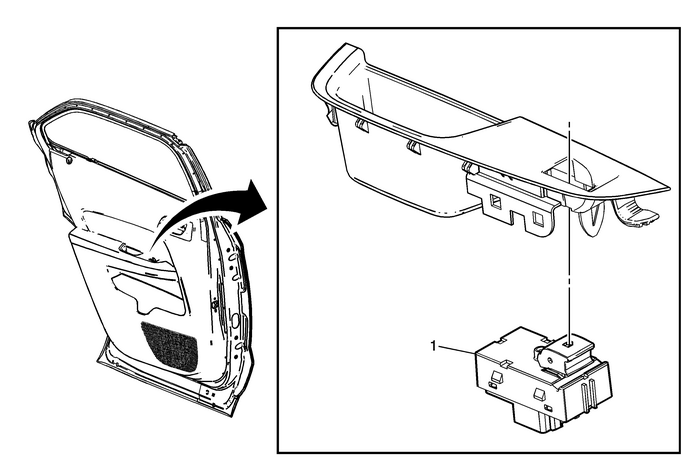

Rear Side Door Window Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear side door accessory switch mount plate. RefertoRear Side Door Accessory Switch Mount Plate Replacement.

1

Rear Side Door Window Switch Assembly

ProcedureDisconnect the electrical connectors.Refer toControl Module Referencesfor programming and setupinformation.
