Rear Side Door Window Replacement Doors

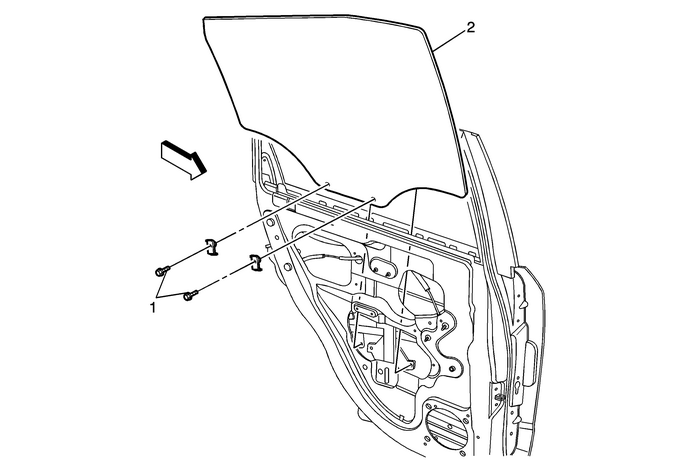

Rear Side Door Window Replacement

Callout

Component Name

Preliminary ProceduresPlace the window in the fully down position.Remove rear door trim panel. Refer toRear Side Door Trim Panel Replacement.Remove the rear side door garnish molding. Refer toRear Side Door Garnish Molding Replacement.Remove the rear side door inner sealing strip. Refer toRear Side Door Window Inner Sealing Strip Replacement.

1

Rear Side Door Window Regulator Guide Nuts to Window(Qty:-2)

Warning:Refer toGlass and Sheet Metal Handling Warning.

Caution:Refer toFastener Caution.

ProcedurePull the rear side door window weatherstrip from thechannel.Apply masking tape to the applique to protect thefinish.Remove the rear side door water deflector.Position window to access the rear side door window regulatorguide nuts.Tighten

11-Y(97-lb-in)

2

Rear Side Door Window

ProcedureIn order to remove the window out of the frame, carefullygrasp and tilt the window as you guide the window up andforward.Install the window to left and right side of the channelbefore operating the window.Inspect the operation of the window before installing thedoor trim panel.Ensure that the window is fully seated into the rear sidedoor window weatherstrip .
