Rear Side Door Window Upper Reveal Molding Replacement Doors

Rear Side Door Window Upper Reveal Molding Replacement

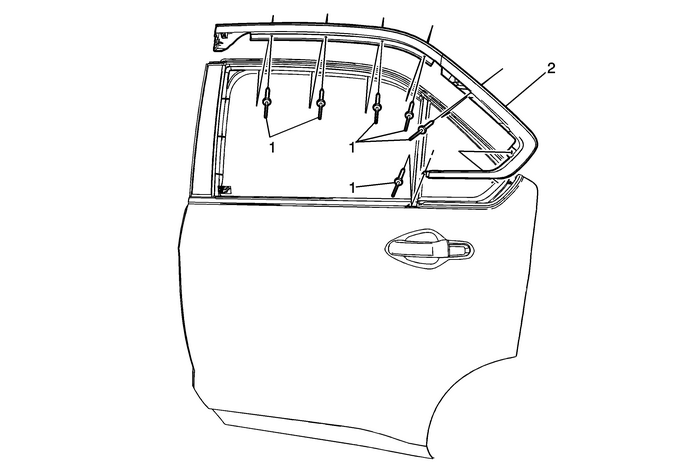

Callout

Component Name

Preliminary ProceduresRemove the rear side door trim panel. Refer toRear Side Door Trim Panel Replacement.Remove the rear side door garnish molding. Refer toRear Side Door Garnish Molding Replacement.Remove the rear side door window belt reveal molding. RefertoRear Side Door Window Belt Reveal Molding Replacement.Remove the rear side window weatherstrip. Refer toRear Side Door Window Weatherstrip Replacement.

1

Rear Side Door Window Upper Reveal Molding Rivet(Qty:-7)

Warning:Refer toGlass and Sheet Metal Handling Warning.

ProcedureOne rivet is located under the rear side door window beltreveal molding.Lower the window to the fully down position.Apply masking tape to the applique to protect thefinish.When drilling cover/protect the interior trim and door fromthe metal shavings.Use a suitable tool, drill out the rivets from the doorframe.

2

Rear Side Door Window Upper Reveal Molding

ProcedureStart at the front edge of the rear door, fully seat themolding before installing the rivets.Use a suitable tool, install the rivets in the upper doorframe.Inspect the door window for proper operation beforeinstalling the door trim panel.
