Rear Side Door Window Inner Sealing Strip Replacement Doors

Rear Side Door Window Inner Sealing Strip Replacement

Callout

Component Name

Preliminary Procedure

Remove rear door trim panel. Refer toRear Side Door Trim Panel Replacement.

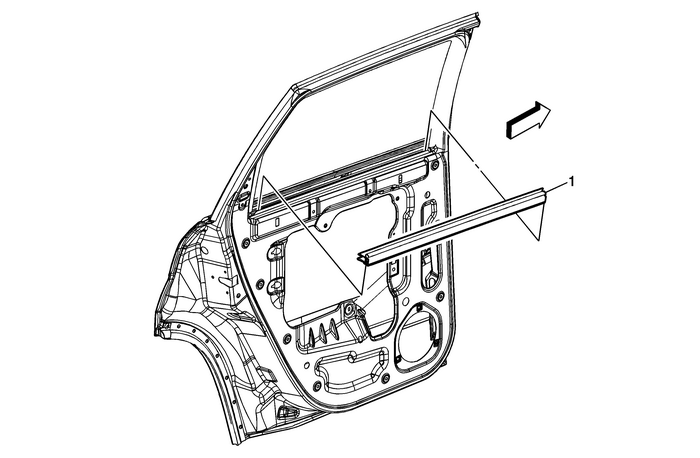

1

Rear Side Door Inner Window Sealing Strip

ProcedureStart from the front edge of the door, pull upward on theinner window sealing strip to release it from the pinch-weldflange.Install the inner window sealing strip to the front edge ofthe door, press firmly onto the pinch-weld flange and work itrearward.Inspect the operation of the window before installing thedoor trim panel.
