Rear Side Door Window Frame Front Applique Replacement Doors

Rear Side Door Window Frame Front Applique Replacement

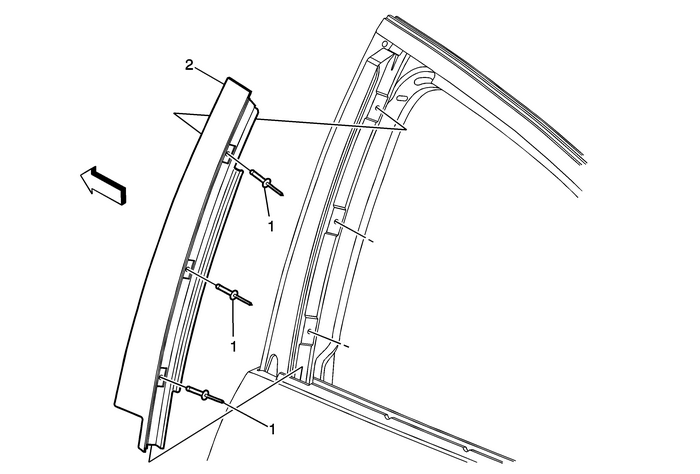

Callout

Component Name

Preliminary Procedure

Remove the rear side door window belt reveal molding. RefertoRear Side Door Window Belt Reveal Molding Replacement.

1

Rear Side Door Window Frame Front Applique Rivets(Qty:-3)

Warning:Refer toGlass and Sheet Metal Handling Warning.

ProcedureLower the window to the fully down position.Apply masking tape to the applique to protect thefinish.Pull the front side door window weatherstrip away from thedoor flange to expose the rivets.When drilling cover/protect the interior trim and door frommetal shavings.Use a suitable tool, drill out the rivets from the upper doorframe.

2

Rear Side Door Window Frame Front Applique

ProcedureUse a suitable tool, install the rivets in the rear side doorframe.Inspect the door window for proper operation beforeinstalling the door trim panel.Transfer the sealing strip.
