Rear Side Door Window Regulator Motor Replacement Doors

Rear Side Door Window Regulator Motor Replacement

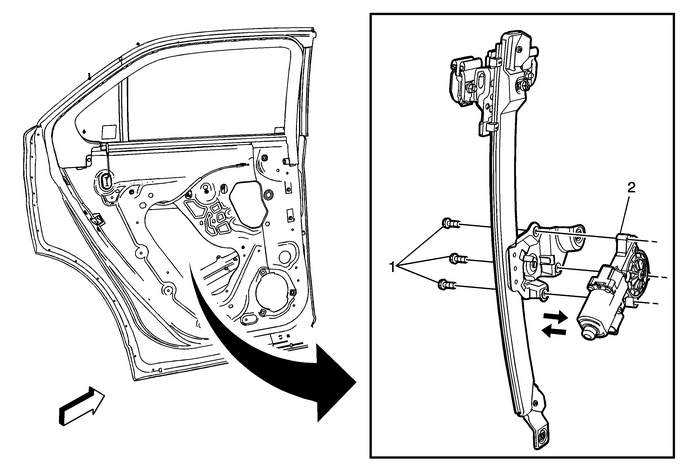

Callout

Component Name

Preliminary Procedure

Remove the rear side door window regulator.Rear Side Door Window Regulator Replacement.

1

Rear Side Door Window Regulator Motor Screw(Qty:-3).

Caution:Refer toFastener Caution.

Tighten

8-Y-(71-lb-in)

2

Rear Side Door Window Regulator Motor

Procedure

Inspect the operation of the window before installing thedoor trim panel.
