Chevrolet Equinox Service Manual: Rear Seat Floor Filler Trim Panel Package Installation Seats Rear

Chevrolet Equinox Service Manual / Body / Seating / Rear Seat Floor Filler Trim Panel Package Installation Seats Rear

Installation Instructions Part Number

23426666

Procedure

Rear Seat Floor Filler Trim Panel Package Installation Seats Rear

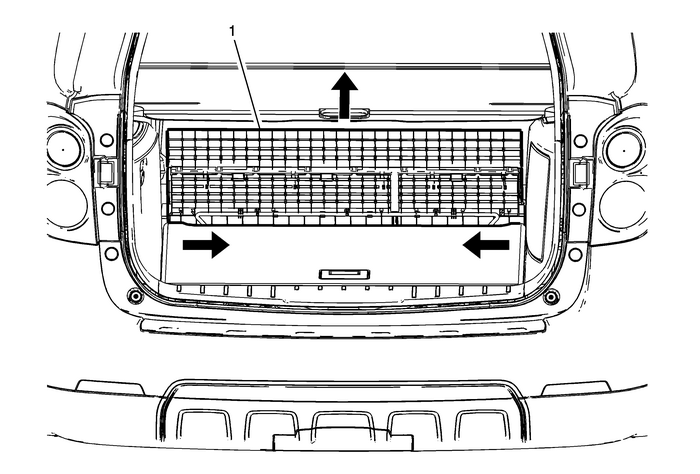

Make sure the rear seat back is in the up position.Depress the tabs inboard on the mounting rod guides and install the filler trim panel(1).
