Chevrolet Equinox Service Manual: Direct Fuel Injector Replacement Fuel System Injectors

Chevrolet Equinox Service Manual / Powertrain / Engine / Direct Fuel Injector Replacement Fuel System Injectors

Removal ProcedureRelieve the high side fuel system pressure. Refer toFuel Pressure Relief.

Note:The fuel injectors have an alignment feature, note theposition of the injectors alignment for installation.

Remove the fuel injection fuel rail assembly. Refer toFuel Injector and Fuel Rail Replacement.

Direct Fuel Injector Replacement Fuel System Injectors

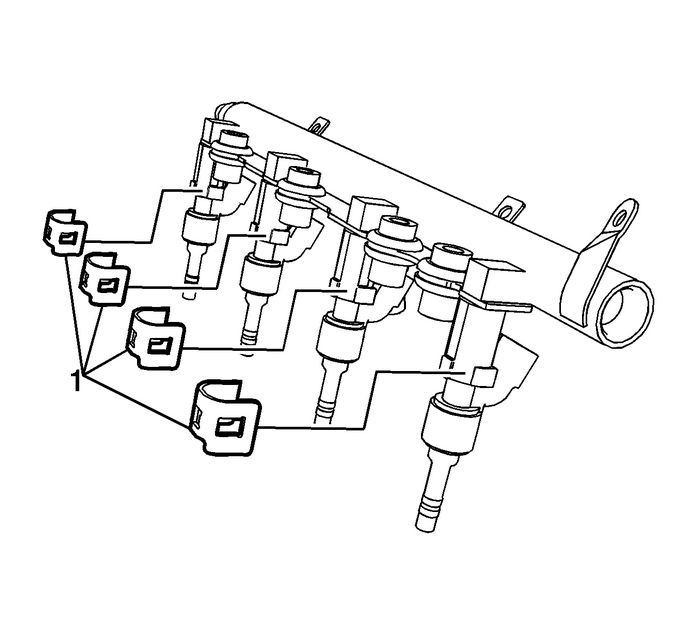

Remove and discard the fuel injectorretainers-(1).Clean and inspect the fuel rail and injectors. Refer toFuel Rail and Injectors Cleaning and Inspection.Installation Procedure

Direct Fuel Injector Replacement Fuel System Injectors

Install NEW fuel injector retainers-(1).

Note:The fuel injectors have an alignment feature and must bereinstalled as noted during removal.

Install the fuel injection fuel rail assembly. Refer toFuel Injector and Fuel Rail Replacement.
