Rear Bumper Impact Bar Replacement Bumpers Rear Bumper

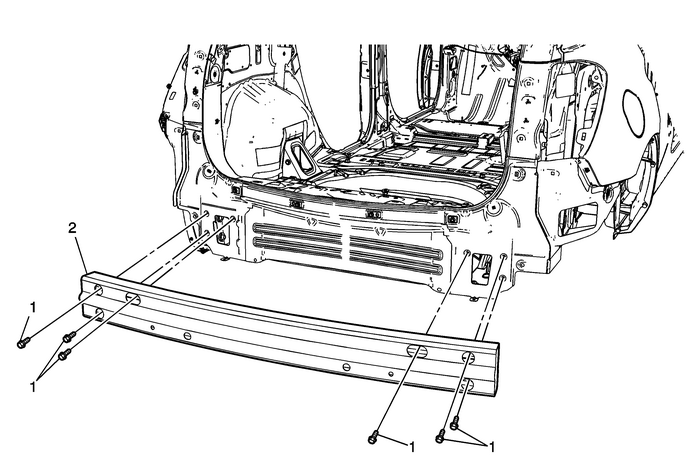

Rear Bumper Impact Bar Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.

1

Rear Impact Bar Bolt (Qty:-6)

Caution:Refer toFastener Caution.

Tighten

25-Y(18-lb-ft)

2

Rear Impact Bar

Rear Bumper Fascia Support Replacement Bumpers Rear Bumper
Rear Bumper Fascia Support ReplacementCalloutComponent NamePreliminary ProcedureRemove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.1Rear Bumper Fascia Support Bolt (Qty:-4)Caution:R ...

Rear Bumper Lower Fascia Replacement Bumpers Rear Bumper
Rear Bumper Lower Fascia ReplacementCalloutComponent NamePreliminary ProcedureRemove the rear bumper fascia molding. Refer toRear Bumper Fascia Molding Replacement.1Rear Bumper Lower Fascia Screw (Qty ...
