Rear Bumper Lower Fascia Replacement Bumpers Rear Bumper

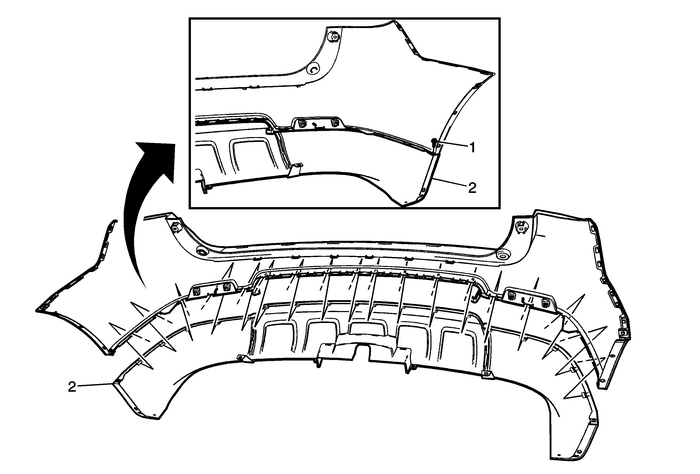

Rear Bumper Lower Fascia Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia molding. Refer toRear Bumper Fascia Molding Replacement.

1

Rear Bumper Lower Fascia Screw (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

6-Y(53-lb-in)

2

Rear Bumper Lower Fascia

ProcedureCarefully push a small nylon wedge between the upper fasciaand the lower fascia. Insert a small flat-bladed tool into thefascia slot and depress the snaps one at a time and pull on thefascia at the same time to gradually remove the lower fascia fromthe upper fascia.Transfer parts as necessary.
Rear Bumper Impact Bar Replacement Bumpers Rear Bumper
Rear Bumper Impact Bar ReplacementCalloutComponent NamePreliminary ProcedureRemove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.1Rear Impact Bar Bolt (Qty:-6)Caution:Refer toFastener ...

Rear Bumper Lower Fascia Replacement (Terrain) Bumpers Rear Bumper
Rear Bumper Lower Fascia ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.Remove the rear bumper fascia molding. Refer toRear ...
