Rear Bumper Fascia Support Replacement Bumpers Rear Bumper

Rear Bumper Fascia Support Replacement

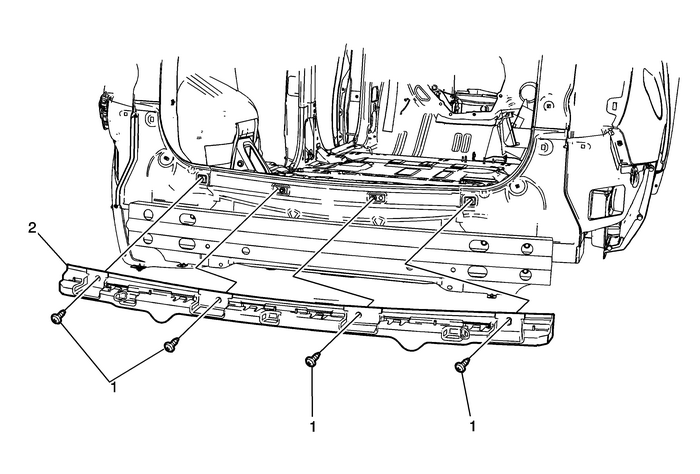

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.

1

Rear Bumper Fascia Support Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

2

Rear Bumper Fascia Support
