Reading Lamp Switch Pushbutton Replacement Lighting Interior Lighting Rear Reading Lamps

Reading Lamp Switch Pushbutton Replacement

Callout

Component Name

Preliminary Procedure

Remove the roof console. Refer toRoof Console Replacement.

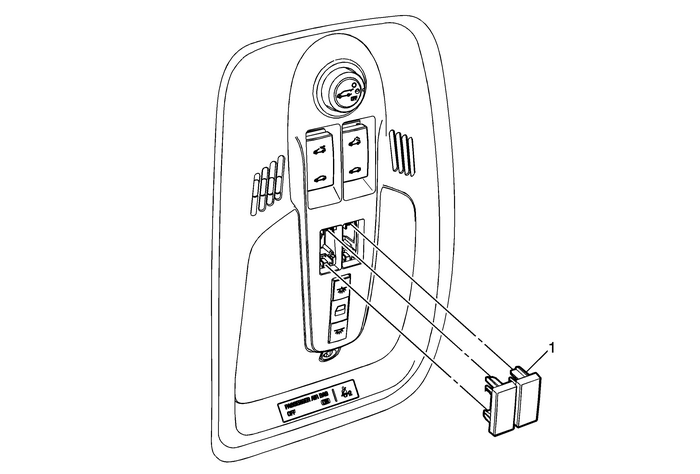

1

Reading Lamp Switch Pushbutton

Procedure

Press tabs together and remove switch.
