Parking and Turn Signal Lamp Bulb Replacement (Terrain) Lighting Exterior Lighting Turn Signal and Hazard Lamps

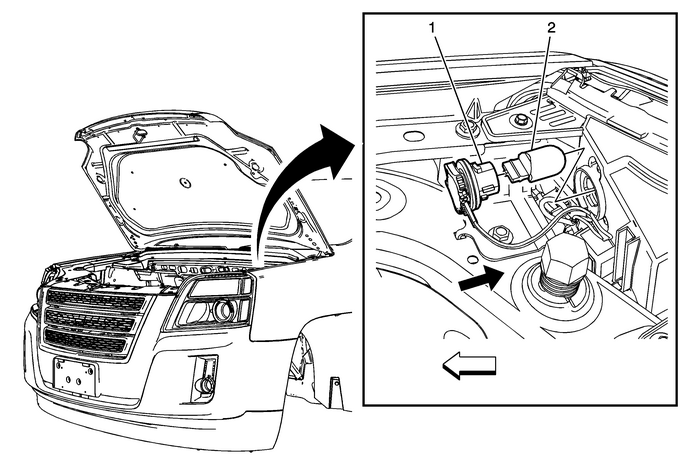

Parking and Turn Signal Lamp Bulb Replacement

Callout

Component Name

Preliminary ProceduresOpen and support the hood.Remove the front bumper fascia opening cover. Refer toFront Bumper Fascia Opening Cover Replacement.

1

Park Turn Signal Lamp Bulb Socket

Warning:Refer toHalogen Bulb Warning.

Procedure

Rotate the bulb socket counter-clockwise and disengage thesocket from the headlamp capsule.

2

Park Turn Signal Lamp Bulb

Tip:Remove and replace the bulb as needed.
