Rear License Plate Lamp Replacement Lighting Exterior Lighting License Lamps

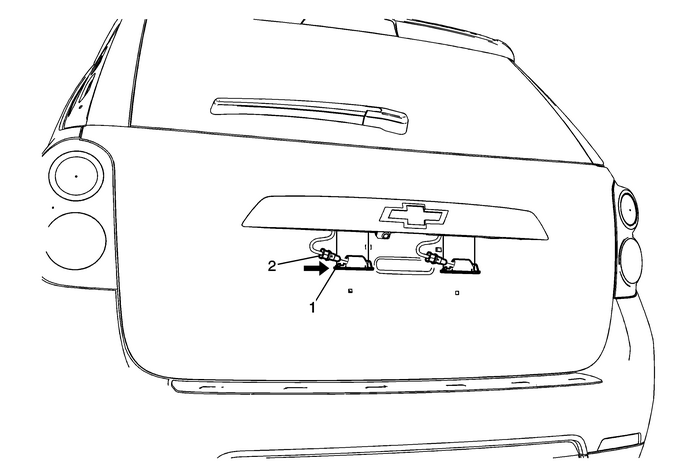

Rear License Plate Lamp Replacement

Callout

Component Name

1

License Lamp Assembly (Qty:-2)

Tip:Depress the driver side of the lamp with a small flat-bladedtool and pull the lamps downward to remove from the liftgateapplique.

2

License Lamp Bulb Socket

Tip:Rotate the bulb sockets counter-clockwise and remove from thelamp assembly. Replace bulbs as needed.
