Radio Speaker Amplifier Replacement

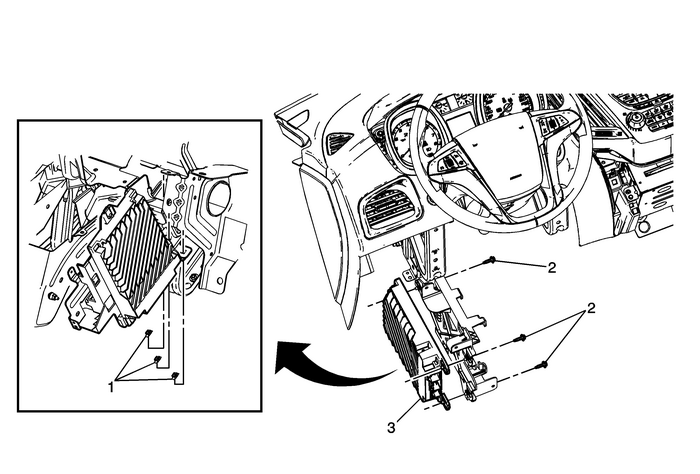

Callout

Component Name

Preliminary ProcedureRemove the instrument insulator panel. Refer toInstrument Panel Insulator Panel Replacement - Left SideRemove the driver knee bolster reinforcement. Refer toDriver Knee Bolster Reinforcement Replacement
1	Amplifier Bracket Push On Nuts (Qty:-3)
2	Radio Speaker Amplifier Bolts (Qty:-3) Caution:Refer toFastener Caution. Tighten 2.5-Y(22-lb-in)
3	Radio Speaker Amplifier Procedure Disconnect the electrical connectors.
