Radio Replacement

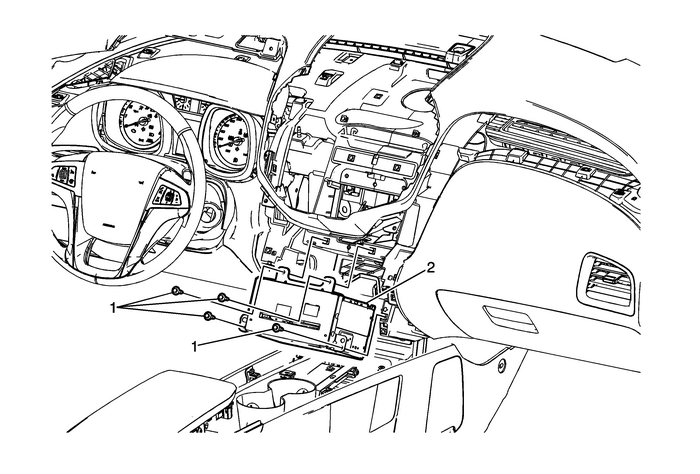

Callout

Component Name

Preliminary ProcedureRemove the radio control assembly. Refer toRadio Control Assembly ReplacementRemove the instrument panel center air outlet. Refer toInstrument Panel Center Air Outlet ReplacementRemove two screws from the lower side of the top pad and two screws from the upperside of the top pad.Remove the mat liner from the cd bezel.Remove the instrument panel lower extension bezel. Refer toInstrument Panel Lower Extension Accessory Bezel ReplacementRemove the cd bezel rearward and up to disconnect connector.Raise up the lower top pad to clear the radio for removal.

Note:The Center of the Radio Assembly may have a mounted Bluetooth Antenna. Do not touchor apply any pressure to the Bluetooth Antenna during removal or installation.

Radio Screw (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

23-Y (17-lb-ft)

Radio Assembly

ProcedureDisconnect the electrical connections.Refer toControl Module Referencesfor programming and setup information.
