Radio Rear Compartment Speaker Replacement

Radio Rear Compartment Speaker Replacement

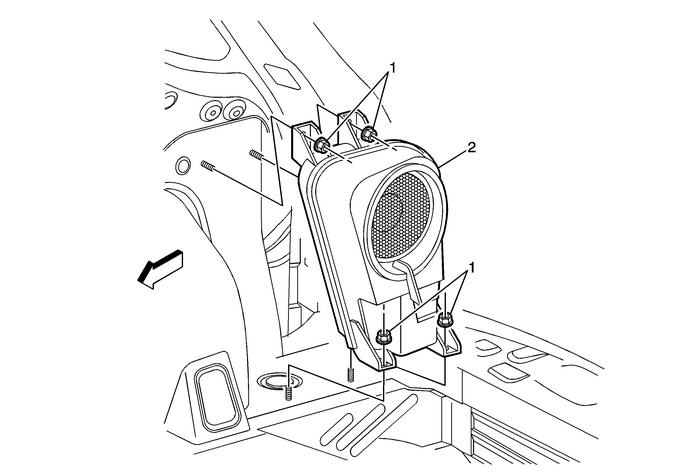

Callout

Component Name

Preliminary Procedure

Remove the right body side trim panel. Refer toBody Side Trim Panel Replacement - Right Side.

1

Radio Rear Compartment Speaker Nut (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Radio Rear Compartment Speaker

Procedure

Disconnect the electrical connection.
