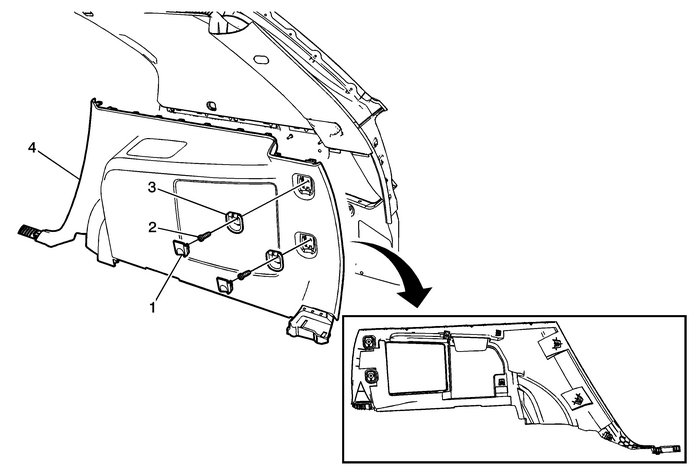

Body Side Trim Panel Replacement - Right Side Trim Panels/Welts

Body Side Trim Panel Replacement - Right Side

Callout

Component Name

Preliminary ProceduresMove the rear seat to the full forward position.Remove the rear compartment front carpet opening cover bypulling upward to disengage the integral hook and loopfasteners.Remove the rear end trim finish panel. Refer toRear End Trim Finish Panel Replacement.Remove the rear side door opening floor carpet retainer.Refer toRear Side Door Opening Floor Carpet Retainer Replacement.

1

Cargo Tie Down Loop Bolt Cap (Qty:-2)

2

Cargo Tie Down Loop Fastener (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

13-Y-(9-lb-ft)

3

Cargo Tie Down Loop

4

Bodyside Trim Panel Assembly

ProcedureRemove fasteners from quarter window trim finish panel. RefertoQuarter Window Trim Finish Panel Replacement.Remove upper and lower together. Separate after removal, ifnecessary.Pull outward to disengage the trim panel retainers.Disconnect the electrical connector, if equipped.
